Agilent/HP/81525A/光探頭
- Agilent/HP/81525A/光探頭
- 欲購買或租賃Agilent/HP/81525A/光探頭?請在線咨詢或拔打24小時電話:13715327187
詳細資料:
81525A|Agilent 81525A|HP 81525A
Specifications at a glance for the 81525A:
Wavelength Range: 800 to 1650 nm
Detector Type (Sensor Element): InGaAs
Detector Size (diameter): 5 mm
Power Range: -70 to +23 dBm (800 - 1650 nm)
Wavelength Accuracy (Uncertainty): +/- 3.0% (900 to 1600 nm)
Additional Information
The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand.
Applicable Fiber Type: Standard Single-mode And Multimode max. 100 um core size, NA < 0.3
Linearity: -50 to +10 dBm
Connector Type Options:
81000FA: FC/PC connector adapter
81000KA: SC/PC connector adapter
81000PA: E-2000 connector adapter
81000VA: ST/PC connector adapter
81003LA : LC/PC connector adapter

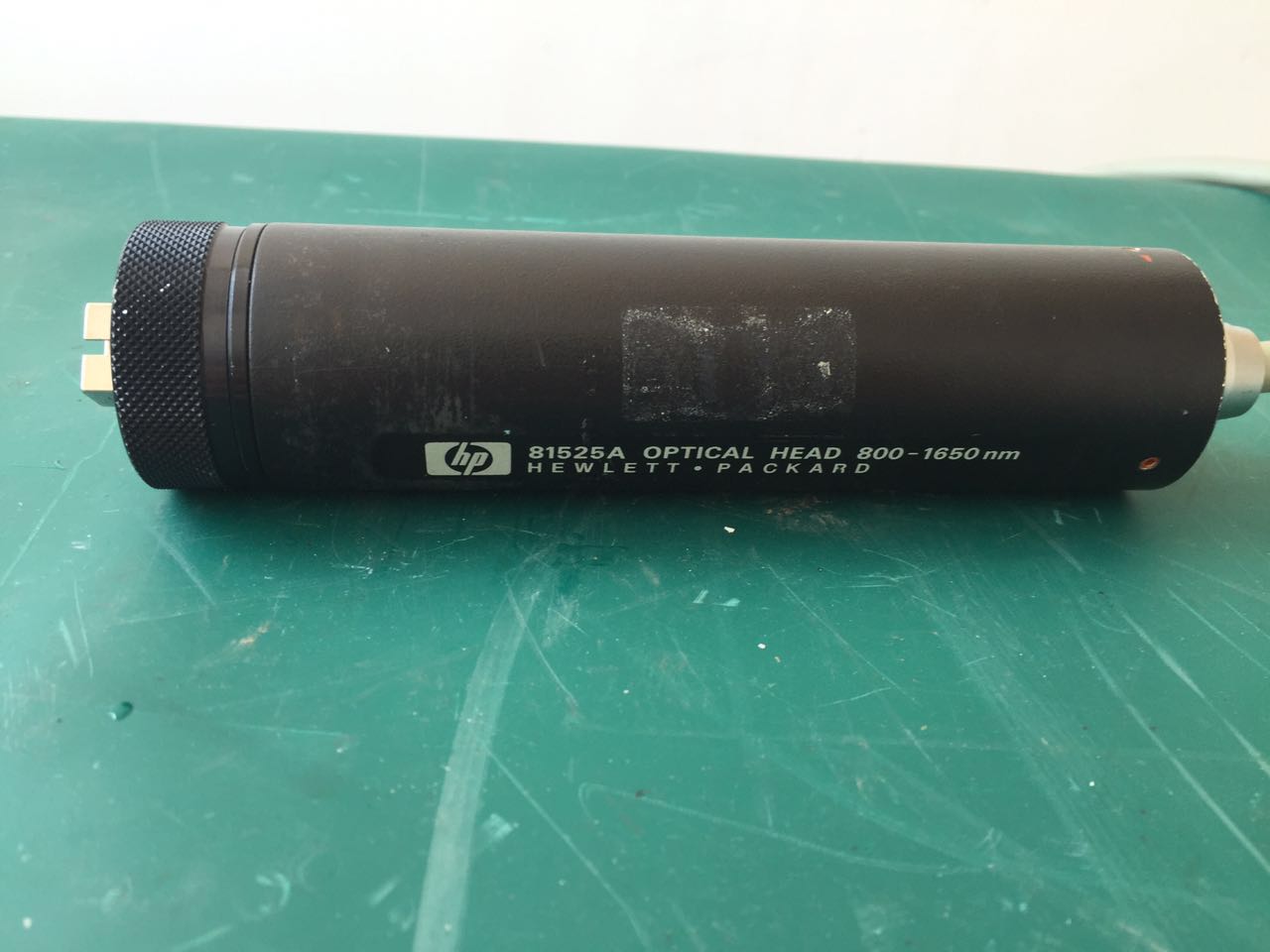

The 81525A is a high power InGaAs optical head. Specs: 5mm. +27 to -70 dBm.800 to 1650 nm. It is used with: HP8163A, HP8164A, HP8153A.
儀器保證:
我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
