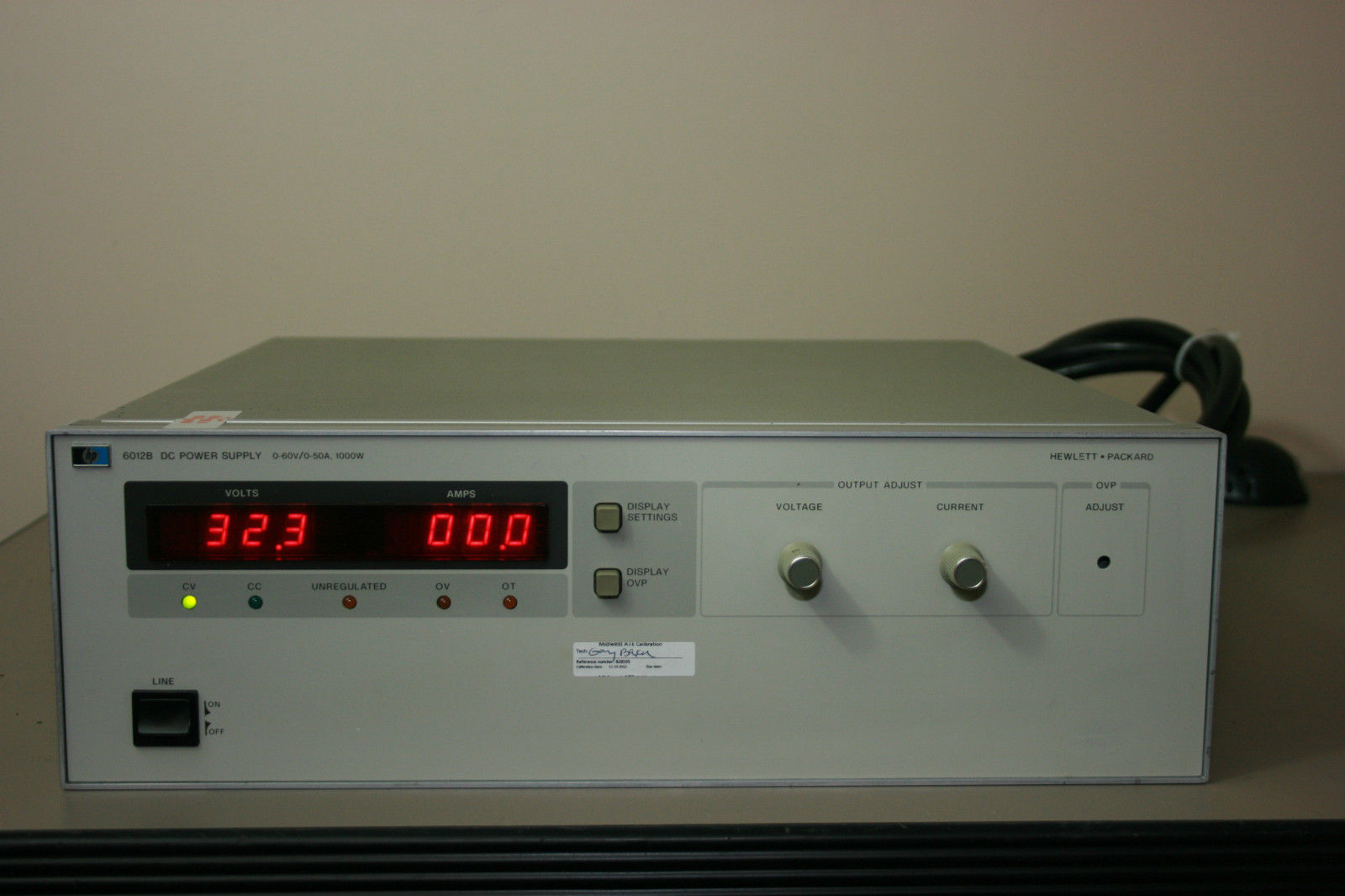

Keysight/6012B/60V/50A/1000W 直流電源

• Keysight/6012B/60V/50A/1000W 直流電源
• 欲購買或租賃Keysight/6012B/60V/50A/1000W 直流電源？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

0 to 60 V, 0 to 50 A or 1200 W max autoranging Typical rating 60 V/17.5 A, 40 V/30 A, 20 V/50 A Constant Voltage, Constant Current Overvoltage Protection Ripple and Noise 5 mVrms, 40 mV pk to pk Load Regulation 5 mV, Line Regulation 3 mV

Output ratings (0 to 55°C) 0 to 60 V, 0 to 50 A Maximum power 1,200 W Autoranging output V1, P1: 60 V, 17.5 A V2, P2: 40 V, 30 A V3, P3: 20 V, 50 A Ripple and noise (20 Hz to 20 MHz) Constant Voltage: 8 mV rms Constant Voltage: 40 mV peak-to-peak Constant Current: 25 mA rms Load regulation 0.01% + 5 mV 0.01% + 10 mA Transient response time (10% step change) Time: 2 ms Level: 100 mV Supplemental Characteristics Programming Resolution Voltage 15 mV Current 12.5 mA dc floating voltage (either terminal can be grounded or floated from chassis ground) ± 240V ac input current 100 Vac (system only): 24 A 120 Vac: 24 A 220 Vac: 15 A 240 Vac: 14 A Physical Specifications Size 425.5 mm W x 132.6 mm H x 516.4 mm D (16.75 in. x 5.25 in. X 20.33 in.) Net Weight 16.3 kg (36 lb.)

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
