Anritsu/MP1520B/PDH 分析儀（誤碼儀）

• Anritsu/MP1520B/PDH 分析儀（誤碼儀）
• 欲購買或租賃Anritsu/MP1520B/PDH 分析儀（誤碼儀）？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

Product Overview

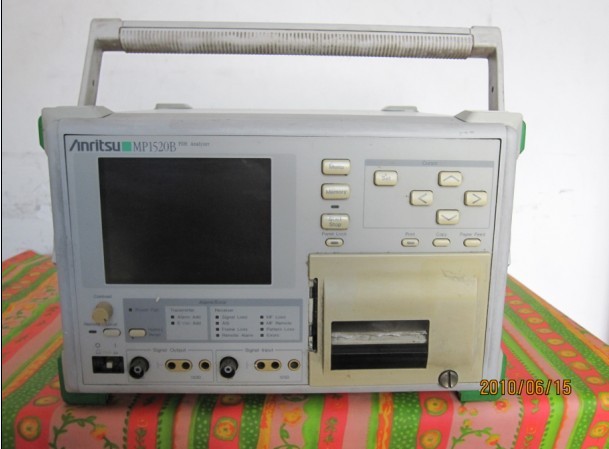

The Anritsu MP1520B is an error measuring instrument for 2, 8, 34, and 139 Mb/s digital transmission systems. This instrument can generate and receive pseudo-random patterns with frames which approximate to line traffic signals. In addition, it has the following features and capabilities: an input/output level conforming to ITU-T G.703, measurements recording by an internal memory, and built-in printer, graphic display, and error analysis for ITU-T G.821, G.826, and M.2100. This instrument is particularly suitable for system testing, evaluation, and troubleshooting. In addition, the Mux/Demux option can be attached to perform N x 64 kb/s and multiplexer/demultiplexer measurements and measurements between different hierarchies. The jitter generation/measurement option can be used to measure jitter tolerance, output jitter and jitter transfer. The MP1520B is suitable for evaluating installed systems, for maintenance measurements, and for in-service monitoring. It is compact, lightweight, and easy to operate. Features: Gererates and receives patterns with or without frames Mux/Demux function in hierachical structuers to N x 64 kb/s (optional) Variety of error and alarm measurement functions (simultaneous measurements) Three types of powerful error analysis Jitter generation and measurement (optional) Graphic display allows easy checking of measurements results Easy settings Following options included: Option 01 - Frequency Offset Option 02 - Mux/Demux Option 03 - CH Bipolar Outputs Option 04 - GPIB Interface OPtion 06 - Jitter Generation/Measurement

儀器保證：

我們的大多數(shù)設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
