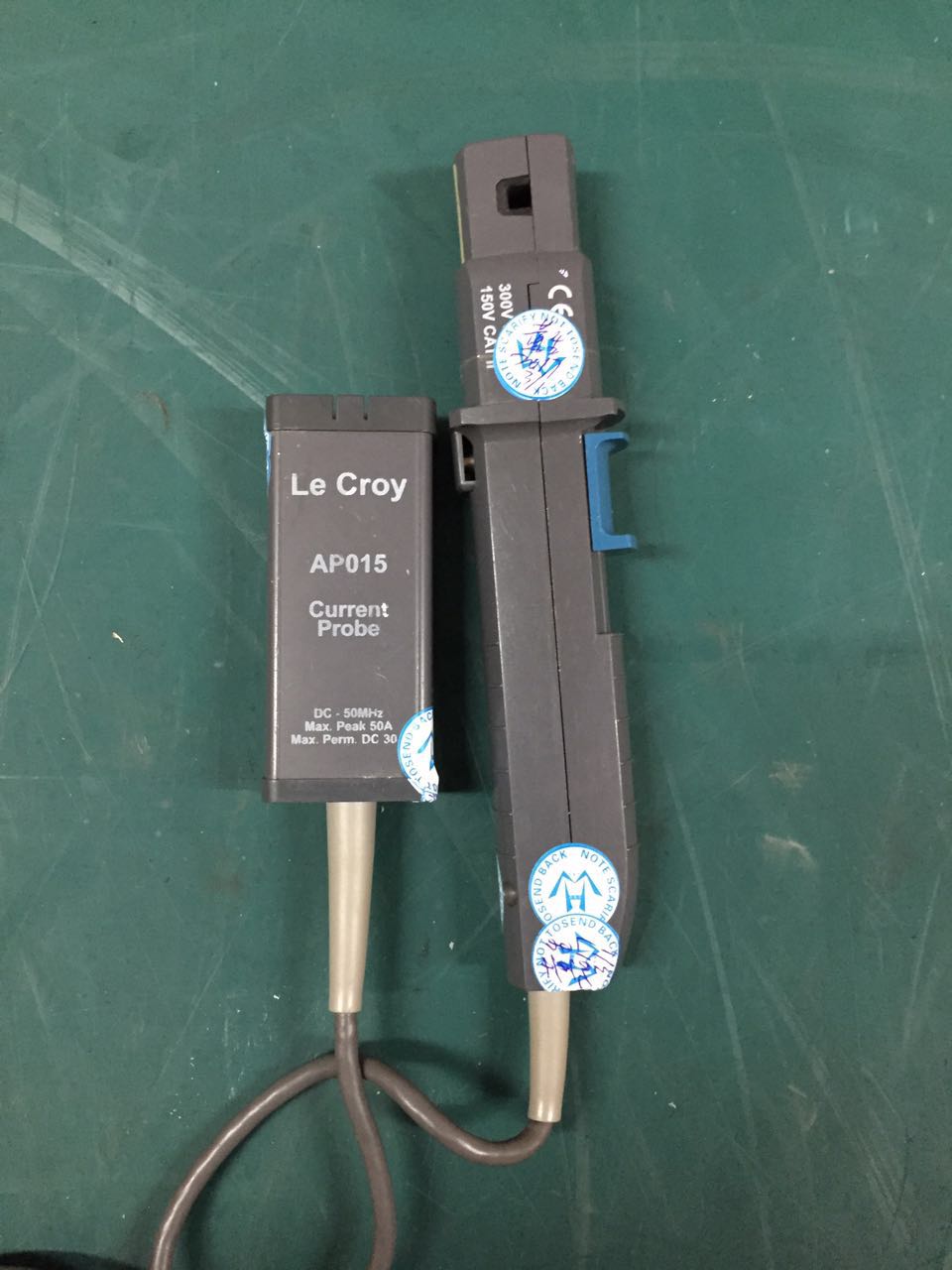

Lecroy/AP015/電流探頭

• Lecroy/AP015/電流探頭
• 欲購買或租賃Lecroy/AP015/電流探頭？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

The Teledyne LeCroy AP015 current probe can measure continuous current of 30Arms and peak pulses of up to 50A for durations up to 10 seconds. This probe also features an overheating protection circuit, which will display an on-screen warning to the user to prevent damage. A probe unlock detection feature is also built in to the AP015 to ensure accurate measurements.

AP015 Specifications/Features

• Bandwidth (Probe Only): 50MHz
• Coupling: AC, 1MΩ; DC, 1MΩ; GND
• Risetime (typical): 7ns
• Max Continuous Input Current: 30A
• Max Peak Current (at pw): 50A for <10s
• Sensitivity: 10mA/div to 50A/div
• Amplitude Accuracy: ±1% of reading to 15A ±2% of reading to 30A
• Maximum Circuit Voltage: 300V CAT I, 150V CAT II (Bare Conductor)
• Interface: all ProBus Oscilloscopes
• Cable Length: 2m (6.6ft)
• Maximum Conductor Size: 5mm (0.2in)

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
