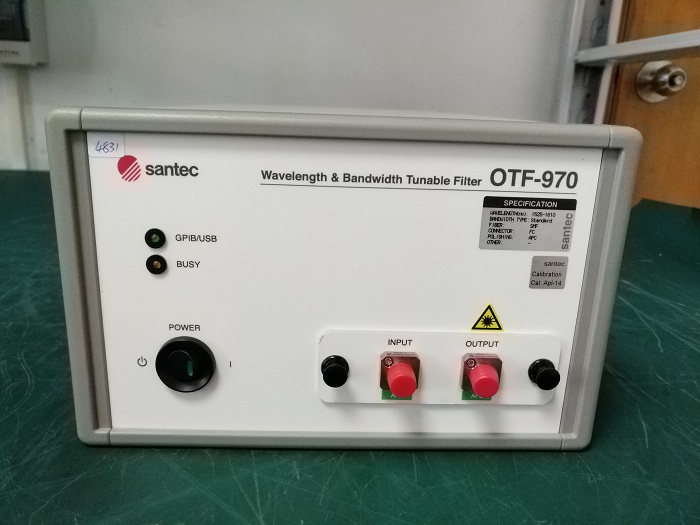

SANTEC/OTF-970/Santec OTF-970 可編程波長&帶寬可調諧濾波器

• SANTEC/OTF-970/Santec OTF-970 可編程波長&帶寬可調諧濾波器
• 欲購買或租賃SANTEC/OTF-970/Santec OTF-970 可編程波長&帶寬可調諧濾波器？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

Santec has developed a new programmable optical tunable filter (OTF-970) that combines the attractive features of wide C+L band tunability with of bandwidth tuning and sharp filter slope. Built with novel, free-space custom optics and an ultra-fine tuning mechanism the OTF-970 ensures precise filter control and a flat-top passband shape. The filter is particularly suited to high isolation channel selection and noise filtering in high-speed transmission testing at 40Gb/s and 100Gb/s.

Overview：

The OTF-970 line up consists of two versions depending on transmission bandwidth range and slope shape. The Standard type has 0.1 to 15nm adjustable bandwidth with a filter slope of 200dB/nm, and the ultra-fine type has 0.08 to 4nm bandwidth tuning with our steepest filter slope, 400dB/nm. The fully programmable OTF-970 has automatic adjustment of the filter center wavelength and bandwidth. An integrated power meter monitors output power and features an automatic peak search function. The setting of wavelength and the bandwidth can be automated and be operated remotely by the GPIB interface.

Features：

• Center wavelength adjustment & bandwidth tuning independently
• Wavelength range: 1525-1610nm (C&L Band)
• Bandwidth range:
  Standard 0.1 – 15.0nm, Ultra-Fine 0.08 – 4.0nm
• Flat-top filter shape with a steep filter slope
  Standard 200dB/nm, Ultra-Fine 400dB/nm
• Peak search function
• Programmable
• Supporting control software (USB / GP-IB)

Applications：

• 40Gb/s , 100Gb/s transmission test
• WDM wavelength tuning
• ASE noise filtering
• Next generation bundle wavelength OXC
• Pulse shaping
• Flexible test and measurement

Specifications：

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
