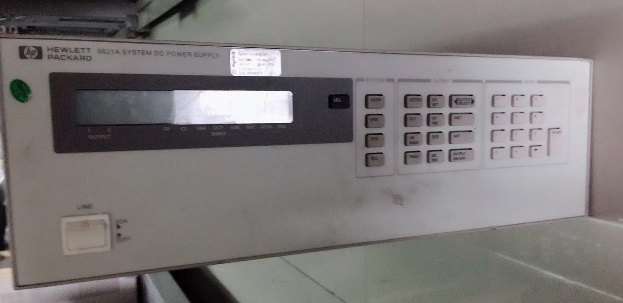

Agilent/6621A /系統電源
- Agilent/6621A /系統電源
- 欲購買或租賃Agilent/6621A /系統電源?請在線咨詢或拔打24小時電話:13715327187
詳細資料:
主要特性與技術指標
Output Ratings
- Low-range volts, amps: 0 to 7 V, 0 to 10 A
- High range volts, amps: 0 to 20 V, 0 to 4 A
Programming Accuracy
- Voltage: 19 mV, + 0.06%
- Current: 100 mA, + 0.16%
Ripple & Noise
- Constant voltage rms: 500 μV, 500 μV
- Peak-to-peak: 3 mV, 3 mV
- Constant current rms: 1 mA, 1 mA
Readback Accuracy
- Voltage: 20 mV, + 0.05%
- +Current: 20 mA, + 0.1%
- -Current: 50 mA, + 0.2%
