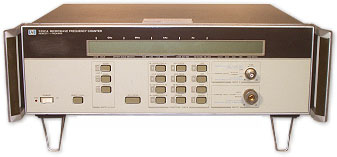

Agilent/HP/5352A/500MHz-40GHz 微波頻率計

• Agilent/HP/5352A/500MHz-40GHz 微波頻率計
• 欲購買或租賃Agilent/HP/5352A/500MHz-40GHz 微波頻率計？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

• Frequency Range:



  • 10 Hz to 525 MHz

  • 50 ohms: 10 MHz to 525 MHz

  • 1 Mohm: 10 Hz to 80 MHz


• Sensitivity:



  • 50 ohms: 10 MHz to 525 MHz, 25 mV rms

  • 1 Mohm: 10 Hz to 80 MHz,  25 mV rms


• Maximum Input: 50 ohms: + 10 dBm; 1 Mohm: 1V rms

• Coupling: AC

• Connector: Replaceable fuse, type BNC (female)

• Impedance: 1 Mohm nominal shunted by  <70 pF or 50 ohm nominal

• Resolution: Selectable, 1 Hz to 1 MHz

• High  Resolution: 1 Mohm mode: 0.001 Hz for <100 kHz input; 0.01 Hz for <1 MHz input; 0.1 Hz for <10 MHz input; 1 Hz for >10 MHz input: 1-second gate.

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
