Overview

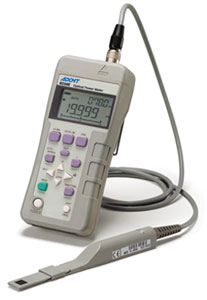

The 8230E is a handheld optical power meter, which is most suitable for production of LDs, optical pickups and drives for optical disks. It was developed to meet functions and performance suitable for CD/DVD production. Two kinds of general-purpose sensors and two kinds of high-output sensors with different shapes respectively (thin-type/cylindrical-type) are available. The thin-type general purpose sensor 82311B is available as an option OPT8230E+11 to the main body. The high-power optical sensors 82313B and 82323B are capable of high-power measurement up to 200mW. The main body that has 4 1/2-digits and 0.01dB resolution display can obtain measurement data easily by using the USB interface installed as standard.

Features

Various sensors applicable to optical disks (CD/DVD) High-power sensor of up to 200mW (82313B/82323B). The maximum input power of 200mW suitable for pickup measurement of high-speed rewritable CD/DVD Low-price general-purpose optical sensor (82311B/82321B) Sensor power calibration wavelength: 650/780nm for CD/DVD Highly reliable sensor that minimizes sensitivity deviation over time in the 400nm range (82311B/82321B/82313B/82323B) 1nm-step wavelength sensitivity correction function Guaranteed accuracy in the wide wavelength range (OPT+20 only for 82311B/82321B. Other options are not available for OPT8230E+11.) 4 1/2 digits, 0.01dB resolution USB interface as standard

Option

OPT8230E+11	8230E general-purpose option. This option is sold as a set with the optical power meter 8230E and the optical sensor 82311B.
OPT8230E+70	Optical power meter former-type sensor adaptive option. This option enables the former-type sensors 820x series (Q82014A/Q82017A/Q82018A/TQ82015) to be connected. *The OPT8230E+11 is not available in combination with the OPT8230E+70.
