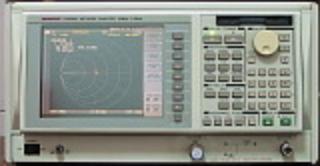

ADVANTEST/R3765BH/矢量網絡分析儀
- ADVANTEST/R3765BH/矢量網絡分析儀
- 欲購買或租賃ADVANTEST/R3765BH/矢量網絡分析儀？請在線咨詢或拔打24小時電話：13715327187
 |
詳細資料：
愛德萬R3765BH 矢量網絡分析儀| 40MHz至3.8GHz
特點
·R3765 40MHz~3.8GHz
·測量速度：0.15ms/測點
·1Hz步進
·動態范圍：100dB
·內置程控器
·3個測試端口
技術指標
·R3765 40MHz~3.8GHz
·測量速度：0.15ms/測點
·1Hz步進
·動態范圍：100dB
·內置程控器
·3個測試端口
技術指標
|
Number of measurement channels |
modelsA/B:2 channels/4 traces modelC:4 channels/8 traces |
|
Measurementsettings | |
|
R3765AH/ R3767AH |
A/R,B/R,A/B,A,B |
|
R3765BH/ R3767BH |
transmission,reflection |
|
R3765CH/R3767CH |
S11,S12,S21,S22,S11&S21，S22—S12 |
|
Display formats |
log/lin amplitude,phase,groupdelay,real and imaginary part,|Z|,R,X,|Y|,G,B |
|
Smith chart |
marker display for log/lin amplitude,phase,realand imaginary part,R+JX,G+JB, |
|
Polar coordinates |
markerdisplay for log/lin amplitude,phase,real and imaginary part |
|
Signalcharacteristics | |
|
Frequency range,resolution |
40MHzto 3.8(8)Ghz,1Hz |
|
with option20 |
up to 20Mhz |
|
Accuracy(25±5℃) |
0.01dB |
|
Accuracy(50Mhz,25±5℃) |
0.5dB |
|
Frequency response(25±5℃) |
2dB(Vpp) |
|
Impedance |
50Ω |
|
Signa purity |
|
|
Harmonic distortion |
<-20dBc(40Mhz to 3.8Ghz,max.output power) |
|
Nonharmonic distortion |
<-25dBc(40Mhzto 3.8GHz,max.output power) |
|
Phasenoise (10KHz offset,1kHz RBW) |
(-85dBc+20log(f/40MHz))dBc |
|
Sweep characteristics | |
|
Parameters |
frequency,level |
|
Range |
full frequencyrange or full level range depending on model |
|
Sweep mode |
linear frequency or level sweep;user-defined |
|
Sweep time |
0.15ms/testpoint with normalization 0.25ms/testpoint with 2-port calibra-tion |
|
Testpoints |
3,6,11,21,51,101,201,301,601,801,1201 |
|
Trigger |
continuous,single,external |
|
Receiver characteristics | |
|
Input |
N connector,50Ω |
|
Maximum input level |
0dBm(model A/B) +15dBm(model C) |
|
Noise level |
withmaximum input signal -90dBc at RBW=3khz -100dBc at RBW=10kHz |
|
Resolution bandwidth |
10Hzto 10kHz in 1 to 3steps |
|
Input crosstalk | |
|
R3765(<3.8GHz) |
-90dB |
|
Model C(2.6 to 3.8Ghz) |
-85dB |
|
Directivity | |
|
<2.6GHz |
-30dB |
|
<3.8Ghz |
-26dB |
|
<8Ghz |
-22dB |
|
Amplitudemeasurement | |
|
Resolution |
0.001dB |
|
Accuracy | |
|
-10dBm,50MHz,25±5℃ |
±0.5dB |
|
Amplitude response |
max.inputlevel-20dB |
|
-10 to -60dBm |
±0.05dB |
|
Phase measurement |
±180℃ |
|
Resolution |
0.01℃ |
|
Frequency response |
±5℃ |
|
-10to -50dB |
±0.3℃ |
|
Group-delaymeasurement |
1 ps to 250s |
|
Resolution |
1ps |
|
Display |
see overviewof models |
|
Markers |
upto 10 independent markers+delta marker with the option of showing all markers in a list |
|
Automatic searchfunction |
min,max,bandwidth,etc. SWR,filter parameters |
|
Data transfer | |
|
Built-inBASIC controller |
provided as standard,high-speed evaluationfunctions for essential trace points through direct data access;con-trol of externaldevices via IEC/IEEE bus bus |
|
Disk drive |
3.5,720Kbyrt(DD),1.44Mbyte(HD) |
|
External interfaces |
15-pinVGA IEC bus (iEEE 488.2,SCPI) RS-232(for BASIC controller only) |
|
Paraller interface |
24bit,2*TTL 8-bitoutput,2*4-bit input/output for BASIC applications; PS2 connector for US keyboard |
|
External reference frequency |
1,2,5,10Mhz,>0dBm |
| Number of measurement channels |
modelsA/B:2 channels/4 traces modelC:4 channels/8 traces |
| Measurementsettings | |
| R3765AH/ R3767AH | A/R,B/R,A/B,A,B |
| R3765BH/ R3767BH | transmission,reflection |
| R3765CH/R3767CH | S11,S12,S21,S22,S11&S21，S22—S12 |
| Display formats | log/lin amplitude,phase,groupdelay,real and imaginary part,|Z|,R,X,|Y|,G,B |
| Smith chart | marker display for log/lin amplitude,phase,realand imaginary part,R+JX,G+JB, |
| Polar coordinates | markerdisplay for log/lin amplitude,phase,real and imaginary part |
| Signalcharacteristics | |
| Frequency range,resolution | 40MHzto 3.8(8)Ghz,1Hz |
| with option20 | up to 20Mhz |
| Accuracy(25±5℃) | 0.01dB |
| Accuracy(50Mhz,25±5℃) | 0.5dB |
| Frequency response(25±5℃) | 2dB(Vpp) |
| Impedance | 50Ω |
| Signa purity | |
| Harmonic distortion | <-20dBc(40Mhz to 3.8Ghz,max.output power) |
| Nonharmonic distortion | <-25dBc(40Mhzto 3.8GHz,max.output power) |
|
Phasenoise (10KHz offset,1kHz RBW) |
(-85dBc+20log(f/40MHz))dBc |
| Sweep characteristics | |
| Parameters | frequency,level |
| Range | full frequencyrange or full level range depending on model |
| Sweep mode | linear frequency or level sweep;user-defined |
| Sweep time |
0.15ms/testpoint with normalization 0.25ms/testpoint with 2-port calibra-tion |
| Testpoints | 3,6,11,21,51,101,201,301,601,801,1201 |
| Trigger | continuous,single,external |
| Receiver characteristics | |
| Input | N connector,50Ω |
| Maximum input level |
0dBm(model A/B) +15dBm(model C) |
|
Noise level |
withmaximum input signal -90dBc at RBW=3khz -100dBc at RBW=10kHz |
| Resolution bandwidth | 10Hzto 10kHz in 1 to 3steps |
| Input crosstalk | |
| R3765(<3.8GHz) | -90dB |
| Model C(2.6 to 3.8Ghz) | -85dB |
| Directivity | |
| <2.6GHz | -30dB |
| <3.8Ghz | -26dB |
| <8Ghz | -22dB |
| Amplitudemeasurement | |
| Resolution | 0.001dB |
| Accuracy | |
| -10dBm,50MHz,25±5℃ | ±0.5dB |
| Amplitude response | max.inputlevel-20dB |
| -10 to -60dBm | ±0.05dB |
| Phase measurement | ±180℃ |
| Resolution | 0.01℃ |
| Frequency response | ±5℃ |
| -10to -50dB | ±0.3℃ |
| Group-delaymeasurement | 1 ps to 250s |
| Resolution | 1ps |
| Display | see overviewof models |
|
Markers |
upto 10 independent markers+delta marker with the option of showing all markers in a list |
| Automatic searchfunction |
min,max,bandwidth,etc. SWR,filter parameters |
| Data transfer | |
| Built-inBASIC controller |
provided as standard,high-speed evaluationfunctions for essential trace points through direct data access;con-trol of externaldevices via IEC/IEEE bus bus |
| Disk drive | 3.5,720Kbyrt(DD),1.44Mbyte(HD) |
| External interfaces |
15-pinVGA IEC bus (iEEE 488.2,SCPI) RS-232(for BASIC controller only) |
| Paraller interface |
24bit,2*TTL 8-bitoutput,2*4-bit input/output for BASIC applications; PS2 connector for US keyboard |
| External reference frequency | 1,2,5,10Mhz,>0dBm |
|
Number of measurement channels |
modelsA/B:2 channels/4 traces modelC:4 channels/8 traces |
|
Measurementsettings | |
|
R3765AH/ R3767AH |
A/R,B/R,A/B,A,B |
|
R3765BH/ R3767BH |
transmission,reflection |
|
R3765CH/R3767CH |
S11,S12,S21,S22,S11&S21，S22—S12 |
|
Display formats |
log/lin amplitude,phase,groupdelay,real and imaginary part,|Z|,R,X,|Y|,G,B |
|
Smith chart |
marker display for log/lin amplitude,phase,realand imaginary part,R+JX,G+JB, |
|
Polar coordinates |
markerdisplay for log/lin amplitude,phase,real and imaginary part |
|
Signalcharacteristics | |
|
Frequency range,resolution |
40MHzto 3.8(8)Ghz,1Hz |
|
with option20 |
up to 20Mhz |
|
Accuracy(25±5℃) |
0.01dB |
|
Accuracy(50Mhz,25±5℃) |
0.5dB |
|
Frequency response(25±5℃) |
2dB(Vpp) |
|
Impedance |
50Ω |
|
Signa purity |
|
|
Harmonic distortion |
<-20dBc(40Mhz to 3.8Ghz,max.output power) |
|
Nonharmonic distortion |
<-25dBc(40Mhzto 3.8GHz,max.output power) |
|
Phasenoise (10KHz offset,1kHz RBW) |
(-85dBc+20log(f/40MHz))dBc |
|
Sweep characteristics | |
|
Parameters |
frequency,level |
|
Range |
full frequencyrange or full level range depending on model |
|
Sweep mode |
linear frequency or level sweep;user-defined |
|
Sweep time |
0.15ms/testpoint with normalization 0.25ms/testpoint with 2-port calibra-tion |
|
Testpoints |
3,6,11,21,51,101,201,301,601,801,1201 |
|
Trigger |
continuous,single,external |
|
Receiver characteristics | |
|
Input |
N connector,50Ω |
|
Maximum input level |
0dBm(model A/B) +15dBm(model C) |
|
Noise level |
withmaximum input signal -90dBc at RBW=3khz -100dBc at RBW=10kHz |
|
Resolution bandwidth |
10Hzto 10kHz in 1 to 3steps |
|
Input crosstalk | |
|
R3765(<3.8GHz) |
-90dB |
|
Model C(2.6 to 3.8Ghz) |
-85dB |
|
Directivity | |
|
<2.6GHz |
-30dB |
|
<3.8Ghz |
-26dB |
|
<8Ghz |
-22dB |
|
Amplitudemeasurement | |
|
Resolution |
0.001dB |
|
Accuracy | |
|
-10dBm,50MHz,25±5℃ |
±0.5dB |
|
Amplitude response |
max.inputlevel-20dB |
|
-10 to -60dBm |
±0.05dB |
|
Phase measurement |
±180℃ |
|
Resolution |
0.01℃ |
|
Frequency response |
±5℃ |
|
-10to -50dB |
±0.3℃ |
|
Group-delaymeasurement |
1 ps to 250s |
|
Resolution |
1ps |
|
Display |
see overviewof models |
|
Markers |
upto 10 independent markers+delta marker with the option of showing all markers in a list |
|
Automatic searchfunction |
min,max,bandwidth,etc. SWR,filter parameters |
|
Data transfer | |
|
Built-inBASIC controller |
provided as standard,high-speed evaluationfunctions for essential trace points through direct data access;con-trol of externaldevices via IEC/IEEE bus bus |
|
Disk drive |
3.5,720Kbyrt(DD),1.44Mbyte(HD) |
|
External interfaces |
15-pinVGA IEC bus (iEEE 488.2,SCPI) RS-232(for BASIC controller only) |
|
Paraller interface |
24bit,2*TTL 8-bitoutput,2*4-bit input/output for BASIC applications; PS2 connector for US keyboard |
|
External reference frequency |
1,2,5,10Mhz,>0dBm |
|
Number of measurement channels |
modelsA/B:2 channels/4 traces modelC:4 channels/8 traces |
|
Measurementsettings | |
|
R3765AH/ R3767AH |
A/R,B/R,A/B,A,B |
|
R3765BH/ R3767BH |
transmission,reflection |
|
R3765CH/R3767CH |
S11,S12,S21,S22,S11&S21，S22—S12 |
|
Display formats |
log/lin amplitude,phase,groupdelay,real and imaginary part,|Z|,R,X,|Y|,G,B |
|
Smith chart |
marker display for log/lin amplitude,phase,realand imaginary part,R+JX,G+JB, |
|
Polar coordinates |
markerdisplay for log/lin amplitude,phase,real and imaginary part |
|
Signalcharacteristics | |
|
Frequency range,resolution |
40MHzto 3.8(8)Ghz,1Hz |
|
with option20 |
up to 20Mhz |
|
Accuracy(25±5℃) |
0.01dB |
|
Accuracy(50Mhz,25±5℃) |
0.5dB |
|
Frequency response(25±5℃) |
2dB(Vpp) |
|
Impedance |
50Ω |
|
Signa purity |
|
|
Harmonic distortion |
<-20dBc(40Mhz to 3.8Ghz,max.output power) |
|
Nonharmonic distortion |
<-25dBc(40Mhzto 3.8GHz,max.output power) |
|
Phasenoise (10KHz offset,1kHz RBW) |
(-85dBc+20log(f/40MHz))dBc |
|
Sweep characteristics | |
|
Parameters |
frequency,level |
|
Range |
full frequencyrange or full level range depending on model |
|
Sweep mode |
linear frequency or level sweep;user-defined |
|
Sweep time |
0.15ms/testpoint with normalization 0.25ms/testpoint with 2-port calibra-tion |
|
Testpoints |
3,6,11,21,51,101,201,301,601,801,1201 |
|
Trigger |
continuous,single,external |
|
Receiver characteristics | |
|
Input |
N connector,50Ω |
|
Maximum input level |
0dBm(model A/B) +15dBm(model C) |
|
Noise level |
withmaximum input signal -90dBc at RBW=3khz -100dBc at RBW=10kHz |
|
Resolution bandwidth |
10Hzto 10kHz in 1 to 3steps |
|
Input crosstalk | |
|
R3765(<3.8GHz) |
-90dB |
|
Model C(2.6 to 3.8Ghz) |
-85dB |
|
Directivity | |
|
<2.6GHz |
-30dB |
|
<3.8Ghz |
-26dB |
|
<8Ghz |
-22dB |
|
Amplitudemeasurement | |
|
Resolution |
0.001dB |
|
Accuracy | |
|
-10dBm,50MHz,25±5℃ |
±0.5dB |
|
Amplitude response |
max.inputlevel-20dB |
|
-10 to -60dBm |
±0.05dB |
|
Phase measurement |
±180℃ |
|
Resolution |
0.01℃ |
|
Frequency response |
±5℃ |
|
-10to -50dB |
±0.3℃ |
|
Group-delaymeasurement |
1 ps to 250s |
|
Resolution |
1ps |
|
Display |
see overviewof models |
|
Markers |
upto 10 independent markers+delta marker with the option of showing all markers in a list |
|
Automatic searchfunction |
min,max,bandwidth,etc. SWR,filter parameters |
|
Data transfer | |
|
Built-inBASIC controller |
provided as standard,high-speed evaluationfunctions for essential trace points through direct data access;con-trol of externaldevices via IEC/IEEE bus bus |
|
Disk drive |
3.5,720Kbyrt(DD),1.44Mbyte(HD) |
|
External interfaces |
15-pinVGA IEC bus (iEEE 488.2,SCPI) RS-232(for BASIC controller only) |
|
Paraller interface |
24bit,2*TTL 8-bitoutput,2*4-bit input/output for BASIC applications; PS2 connector for US keyboard |
|
External reference frequency |
1,2,5,10Mhz,>0dBm |
|
Number of measurement channels |
modelsA/B:2 channels/4 traces modelC:4 channels/8 traces |
|
Measurementsettings | |
|
R3765AH/ R3767AH |
A/R,B/R,A/B,A,B |
|
R3765BH/ R3767BH |
transmission,reflection |
|
R3765CH/R3767CH |
S11,S12,S21,S22,S11&S21，S22—S12 |
|
Display formats |
log/lin amplitude,phase,groupdelay,real and imaginary part,|Z|,R,X,|Y|,G,B |
|
Smith chart |
marker display for log/lin amplitude,phase,realand imaginary part,R+JX,G+JB, |
|
Polar coordinates |
markerdisplay for log/lin amplitude,phase,real and imaginary part |
|
Signalcharacteristics | |
|
Frequency range,resolution |
40MHzto 3.8(8)Ghz,1Hz |
|
with option20 |
up to 20Mhz |
|
Accuracy(25±5℃) |
0.01dB |
|
Accuracy(50Mhz,25±5℃) |
0.5dB |
|
Frequency response(25±5℃) |
2dB(Vpp) |
|
Impedance |
50Ω |
|
Signa purity |
|
|
Harmonic distortion |
<-20dBc(40Mhz to 3.8Ghz,max.output power) |
|
Nonharmonic distortion |
<-25dBc(40Mhzto 3.8GHz,max.output power) |
|
Phasenoise (10KHz offset,1kHz RBW) |
(-85dBc+20log(f/40MHz))dBc |
|
Sweep characteristics | |
|
Parameters |
frequency,level |
|
Range |
full frequencyrange or full level range depending on model |
|
Sweep mode |
linear frequency or level sweep;user-defined |
|
Sweep time |
0.15ms/testpoint with normalization 0.25ms/testpoint with 2-port calibra-tion |
|
Testpoints |
3,6,11,21,51,101,201,301,601,801,1201 |
|
Trigger |
continuous,single,external |
|
Receiver characteristics | |
|
Input |
N connector,50Ω |
|
Maximum input level |
0dBm(model A/B) +15dBm(model C) |
|
Noise level |
withmaximum input signal -90dBc at RBW=3khz -100dBc at RBW=10kHz |
|
Resolution bandwidth |
10Hzto 10kHz in 1 to 3steps |
|
Input crosstalk | |
|
R3765(<3.8GHz) |
-90dB |
|
Model C(2.6 to 3.8Ghz) |
-85dB |
|
Directivity | |
|
<2.6GHz |
-30dB |
|
<3.8Ghz |
-26dB |
|
<8Ghz |
-22dB |
|
Amplitudemeasurement | |
|
Resolution |
0.001dB |
|
Accuracy | |
|
-10dBm,50MHz,25±5℃ |
±0.5dB |
|
Amplitude response |
max.inputlevel-20dB |
|
-10 to -60dBm |
±0.05dB |
|
Phase measurement |
±180℃ |
|
Resolution |
0.01℃ |
|
Frequency response |
±5℃ |
|
-10to -50dB |
±0.3℃ |
|
Group-delaymeasurement |
1 ps to 250s |
|
Resolution |
1ps |
|
Display |
see overviewof models |
|
Markers |
upto 10 independent markers+delta marker with the option of showing all markers in a list |
|
Automatic searchfunction |
min,max,bandwidth,etc. SWR,filter parameters |
|
Data transfer | |
|
Built-inBASIC controller |
provided as standard,high-speed evaluationfunctions for essential trace points through direct data access;con-trol of externaldevices via IEC/IEEE bus bus |
|
Disk drive |
3.5,720Kbyrt(DD),1.44Mbyte(HD) |
|
External interfaces |
15-pinVGA IEC bus (iEEE 488.2,SCPI) RS-232(for BASIC controller only) |
|
Paraller interface |
24bit,2*TTL 8-bitoutput,2*4-bit input/output for BASIC applications; PS2 connector for US keyboard |
|
External reference frequency |
1,2,5,10Mhz,>0dBm |
儀器保證：
我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
品牌推薦 |
||
|
||
|
Copyright© 2022 All Rights Reserved. 深圳市嘉惠捷科技有限公司 版權所有 [粵ICP備11090750號] [法律顧問] 公司地址：深圳市南山區西麗牛成路221號8樓 郵編：518000 在線QQ服務:  銷售服務熱線：13715327187 電話：0755-86016691 傳真：0755-86016691回收熱線：13982098642 E-mail:sales@test-e.com |
