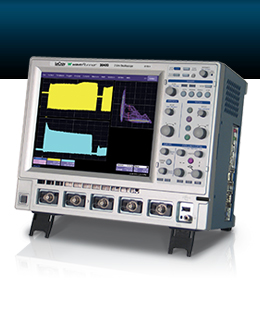

Lecroy/VBA204Xi-A/Vehicle Bus Analyzers

• Lecroy/VBA204Xi-A/Vehicle Bus Analyzers
• 欲購買或租賃Lecroy/VBA204Xi-A/Vehicle Bus Analyzers？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

2 GHz Vehicle Bus Analyzer,5 GS/s,4ch,12.5 Mpts/Ch DSO with 10.4" Color Display,25 Mpts/Ch interleaved

The Vehicle Bus Analyzer decodes CAN serial data into Symbolic (application layer ) text directly on the oscilloscope display. For the first time, an engineer has both the full range of CAN protocol stack information—symbolic, hex, and electrical signal—and the ability to view additional in-circuit electrical signals (sensors and actuators, voltage levels, transients, etc.) that influence the CAN bus. In addition, up to four different CAN buses can be decoded at one time.Standard and specialized oscilloscope tools can be used to validate and debug designs.

• CAN symbolic (Application Layer) decode of up to 4 CAN buses
• CAN triggering with setup in symbolic format
• CAN digital date extraction with symbolic format setup and plot data as an analog signal
• CAN automated timing measurements
• Compatible with CAN DBC database format
• Includes CANbus TDM, FlexRay TDP, and LINbus TD solutions
• FlexRay, Trigger, Decode, and Physical Layer testing (version 2.1)
• LIN Trigger and Decode supported for 1.3, 2.x, J2602 versions
• FlexRay eye diagram mask testing with error location
• FlexRay physical layer measurement para meters for propagation delay, asymmetric delay, truncation and jitter
• Capture thousands (seconds) of CAN, FlexRay and LINbus messages with up to 25 Mpts of memory

儀器保證：

我們的大多數(shù)設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
