Keysight/E1459A/64通道隔離數字輸入/中斷

Keysight/E1459A/64通道隔離數字輸入/中斷
欲購買或租賃Keysight/E1459A/64通道隔離數字輸入/中斷？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

主要技術指標

1-Slot, C-size, register based
64 interrupts, maskable and edge-selectable
Jumper-selectable input levels
Time-programmable debounce
On-board 5 V supply for pull-up capability
Handshake lines for each word (16 channels)
For complete details, click on the Data Sheet link.

描述

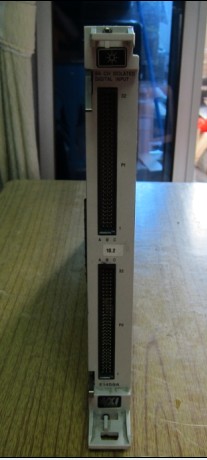

The Agilent E1459A 64-channel isolated digital input/interrupt is a C-size, 1-slot, register-based VXI module. It is used to sense dc levels and edge transitions up to 48 Vdc. All inputs are optically isolated to withstand up to 125 V rms or Vdc. Plus, using the module''''''''s built-in 5 V supply with 9.4 kOhms effective pull-up resistance, you can detect whether external switches are open or closed.

The debounce feature is programmable for periods of 16 µs to 1074 s in binary increments. Channel groups 1 to 32 and 33 to 64 can each have a unique programmed debounce period.

Each word (16-bit/channel) has strobe in, ready for data, and interrupt out. Strobe-in lines can be connected in parallel for 32- or 64-bit transfers.
