Agilent/HP/E1339A/72通道數字輸出/繼電器驅動器

Agilent/HP/E1339A/72通道數字輸出/繼電器驅動器
欲購買或租賃Agilent/HP/E1339A/72通道數字輸出/繼電器驅動器？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

主要技術指標

1-Slot, B-size, register based
Digital output or dense relay driver
Open Collector outputs switch up to 32 V
Relay coil flyback protection
Power for driver external devices
Output cables supplieditions

描述

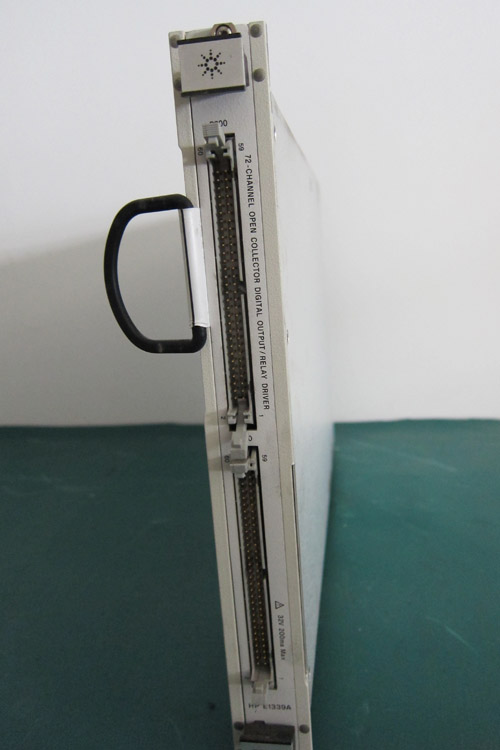

The Agilent E1339A 72-channel digital output/relay driver is a B-size, 1-slot, register-based VXI module. Channels can be used (with external pull-up resistors) as digital outputs or as drivers for external relays.

All channels are referenced to chassis ground, can sink up to 200 mA each, and can switch voltages up to 32 V. Limited power is available on the module faceplate for powering external devices. An on-board jumper permits either the + 5, + 12, or + 24 V VXI power supplies to be used for powering external devices.

Please note that +24 volt power is not available on Agilent B-size VXI mainframes. If +24 volt load power is required in such a case, an external power supply may be used. +24 volt power is available on Agilent C-size mainframes.

The downloadable SCPI and VXI plug&play drivers provide open/close commands for individual 72-channel operation or for 36-channel dual output operation (the latter is designed specifically for driving latching microwave relays).
