Exfo/IQS-3100/可變光衰減器

• Exfo/IQS-3100/可變光衰減器
• 欲購買或租賃Exfo/IQS-3100/可變光衰減器？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

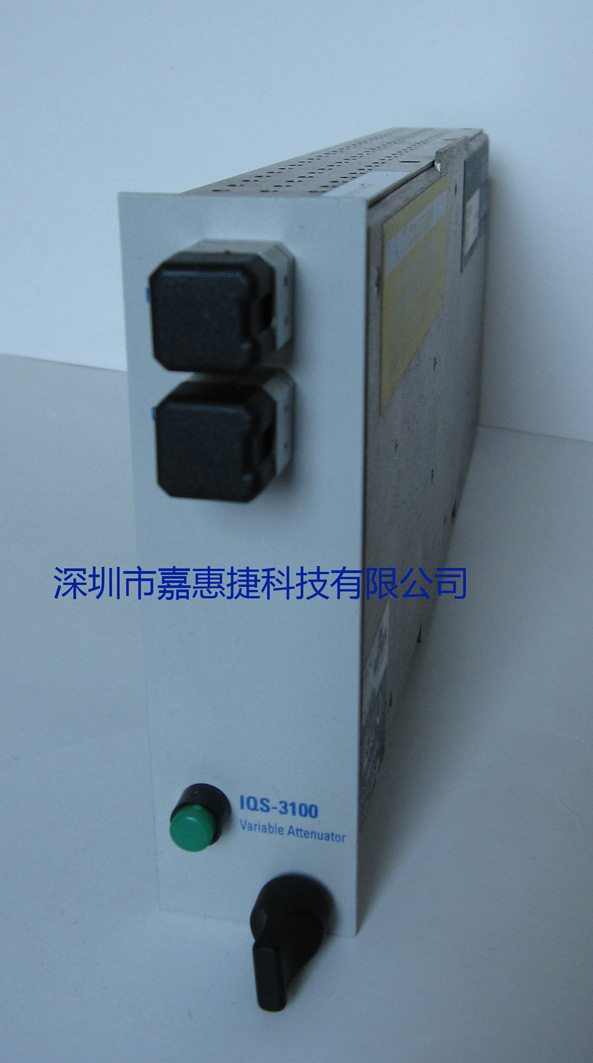

EXFO IQS-3100 可調衰減器

Product Description

NOTES
a. At 23 °C ± 5 °C.
b. Measured at 1310 nm and 1550 nm for singlemode units, measured at 850 nm and 1300 nm for
multimode units.
c. Measured with FC/UPC connectors for singlemode units and FC/PC for multimode units.
d. Measured at 1310 nm and 1550 nm (up to 60 dB) for singlemode units and 850 nm and 1300 nm
(up to 50 dB) for multimode units, non-polarized light.
e. Measured between 1520 nm and 1570 nm at attenuation 20 dB, typical for BWM.
f. Measured at 1550 nm, attenuation of < 30 dB.
g. The return loss is limited by the return loss of the connectors. The connectors used are FC/APC for
singlemode units and FC/PC for multimode units.
h. Typical value. Prolonged exposure may damage the unit.

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
