Agilent/HP/81624A/光功率探頭|光探頭

• Agilent/HP/81624A/光功率探頭|光探頭
• 欲購買或租賃Agilent/HP/81624A/光功率探頭|光探頭？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

Agilent 81624A|HP-81624A|HP81624A 光功率探頭|光探頭

品牌：安捷倫 | Agilent | 惠普 | HP

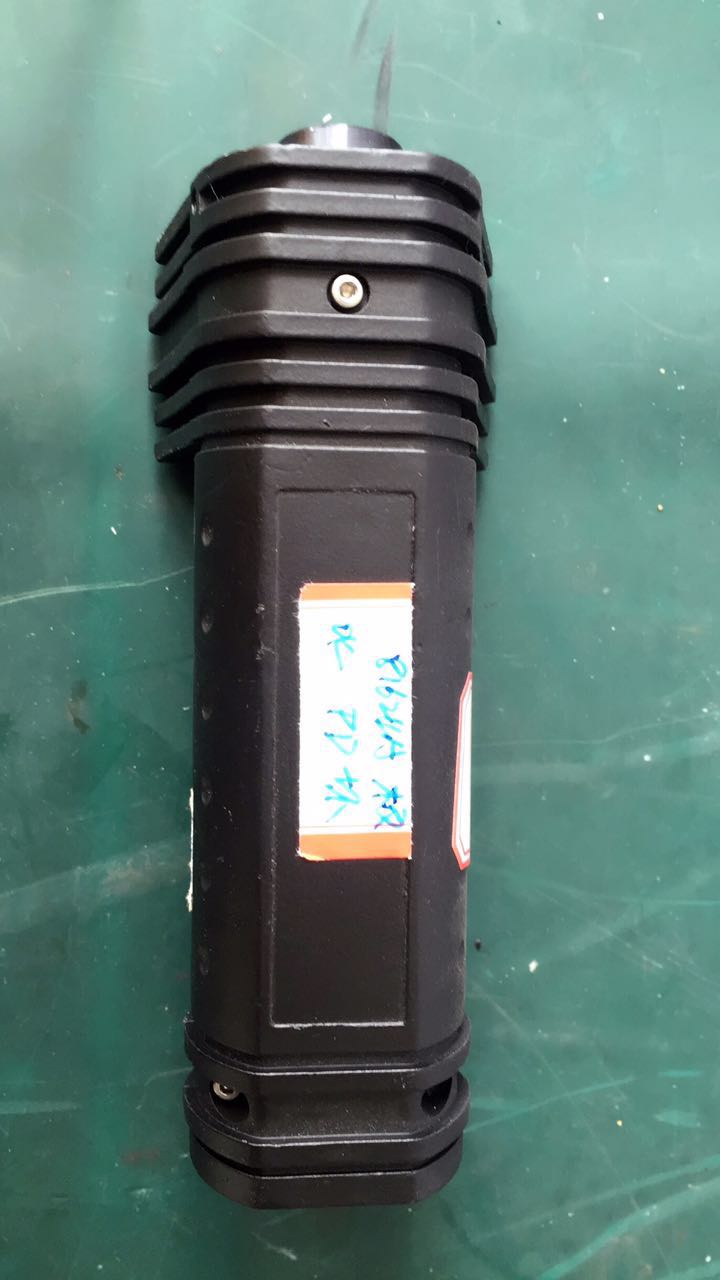

Agilent 81624A Optical Head

Specifications at a glance for the 81624A

- Wavelength Range: 800 to 1700 nm
- Detector Type (Sensor Element): InGaAs
- Detector Size (diameter): 5 mm
- Power Range: +10 to -90 dBm
- Uncertainty at Reference Conditions (-20 dBm): +/- 2.2% (1000 to 1630 nm)
- No Analog Output

Additional Information

The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand. The optical heads have to be operated with the single (Agilent 81618A) or dual (Agilent 81619A) interface modules.

These modules are controlled in any configuration in any of the mainframes 8163B, 8164B and 8166B. A highly flexible connector interface palette addresses connectorized, bare fiber or open beam application

- Applicable Fiber Type: Standard Single-mode And Multimode max. 100 um core size, NA < 0.3

- Linearity: CW +10 to -70 dBm (1000 - 1630 nm)

- Connector Type Options:

81000FA: FC/PC connector adapter
81000KA: SC/PC connector adapter
81000PA: E-2000 connector adapter
81000VA: ST/PC connector adapter
81003LA : LC/PC connector adapter

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
