詳細資料：
主要特點和優點
RSA6100A 系列6.2 GHz 和14 GHz 實時頻譜分析儀
- 發現
-
- DPX" 頻譜處理技術，使用基于發生頻次的顏色等級畫面，直觀地理解隨時間變化的RF 信號
- 革命性的DPX技術，可以顯示最短24微秒的瞬態信號
- 觸發
-
- 泰克獨有的40 MHz 和110 MHz 頻率模板觸發(FMT)技術，在頻域中發生任何變化時觸發采集，根據事件簡便地捕獲瞬變RF 信號
- 觸發頻域中最短出現時間10.3微秒的瞬態信號
- 捕獲
-
- 可以把高達110 MHz跨度內的所有信號捕獲到存儲器中
- 在110 MHz 帶寬時高達1.7 s 的采集長度，可以全面分析測量期間的數據，而不需進行多次采集
- 分為6.2 GHz 和14 GHz 兩個型號
- 在所有時間全面預選，無鏡像，在任何跨度上提供高的動態范圍
- 接口TekConnect 探頭，進行RF 探測
- 分析
-
- 全面的時間相關多域顯示，把時域、頻域、相位和幅度方面的問題關聯起來，在調試時更迅速地找到問題所在
- 功率測量和信號統計，幫助您檢定器件和系統：ACLR, 多載波ACLR, 功率隨時間變化, CCDF，OBW/EBW 和雜散測試
- 使用CISPR 和Mil/-6dB 濾波器及CISPR準峰值檢測器和峰值檢測器進行EMI 診斷

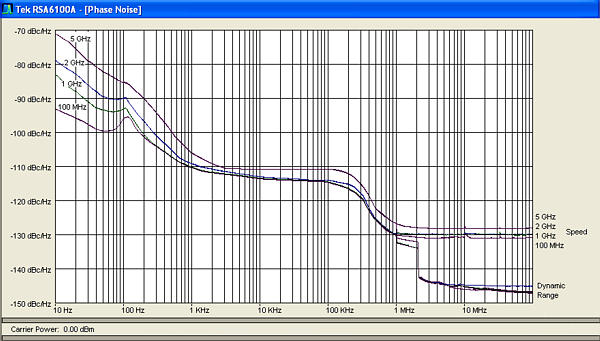

- 相噪和抖動測量(選項11)
- 高級測量套件(選項20) - 脈沖測量包括上升時間、脈寬和脈沖到脈沖相位，深入測試脈沖信號
- 通用數字調制分析(選項21)，提供了矢量信號分析儀功能
- 泰克OpenChoice®，把測量數據簡便地傳送到各種分析程序中，如Excel和MATLAB
應用
- 在頻譜監測和監控中找到干擾信號和未知信號
- 檢定雷達和脈沖式RF 信號
- 調試RF 器件、模塊或系統
- 分析認知無線電系統和軟件定義的無線電系統隨時間變化的行為
- EMI診斷－ 提高設計通過一致性測試的信心
- 捕獲多載波3G和4G 系統的矢量信號參數，進行離線分析
全面檢定隨時間變化的RF 信號
RSA6100A 系列可以幫助您簡便地發現其它信號分析儀可能會漏掉的設計問題。革命性的DPX®頻譜畫面可以用顏色生動直觀地顯示頻域中信號瞬變隨時間變化情況，立即顯示發生的問題，為你的設計提供足夠信心，。其它信號分析儀是不可能提供這種生動的瞬變顯示的。一旦使用DPX 發現了問題，RSA6100A 系列實時頻譜分析儀(RTSA)可以觸發事件，捕獲變化的RF 事件的連續時間記錄，在所有域中進行時間相關分析。您可以在一臺儀器中，同時獲得寬帶矢量信號分析儀、頻譜分析儀和實時頻譜分析儀獨有的觸發- 捕獲- 分析功能。
發現
通過采用DPXTM頻譜處理引擎專利技術，頻譜分析儀可以實時分析瞬變信號。由于可以執行每秒>48,000個頻率變換，因此在頻域中可以顯示事件周期最短24 μs的瞬變。這較掃描分析技術改進了500倍。可以在位圖顯示中根據發生頻率在事件上標出色碼，以無可比擬的方式查看瞬變信號。

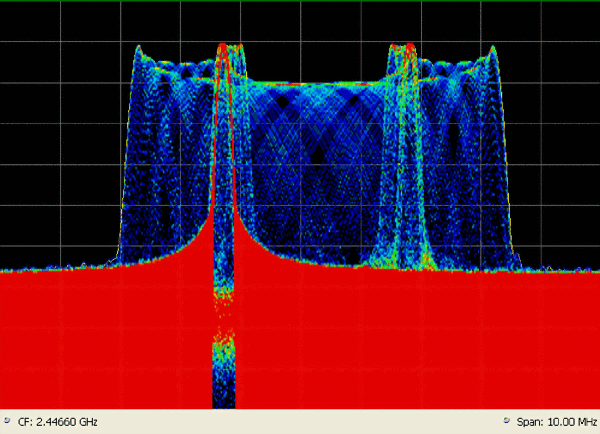

革命性的DPX頻譜畫面揭示了瞬變信號行為，幫助您發現不穩定性、毛刺和干擾。在這里，可以詳細查看發生不頻繁的瞬變信號。發生頻次用顏色等級表示，不頻繁的瞬變事件用藍色表示(右面)，噪聲背景用紅色表示。
觸發
泰克頻率模板觸發(FMT)專利技術選項02可以在高達110 MHz帶寬中簡便地捕獲瞬變信號。可以簡單地配置FMT，監測采集帶寬內頻率占用的所有變化。功率觸發在時域及任何采集帶寬內工作，可以監測越過用戶設置的功率門限的瞬間時點。解析帶寬可以與功率觸發一起使用，限制頻帶，降低噪聲。它為同步測試系統事件提供了兩種外部觸發。
捕獲
可以捕獲一次，然后進行多次測量，而不需重新捕獲。采集帶寬中的所有信息將記錄到RSA6100A 系列的深存儲器中。記錄長度視選擇的采集帶寬而變化，在配備FMT/深存儲選項02的情況下，在帶寬為110 MHz 時記錄長度是1.7 秒，帶寬為1 MHz 時記錄長度是81.9 秒，帶寬為10 kHz時記錄長度是1.46小時。它在直到110 MHz 的所有采集帶寬中提供了73 dB 的無雜散動態范圍 (選項110)，當存在大信號時可以實時捕獲小信號。

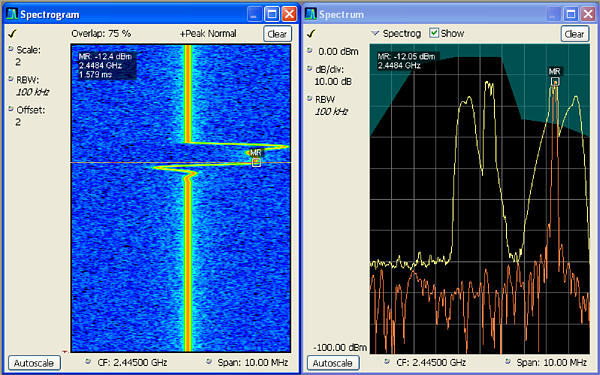

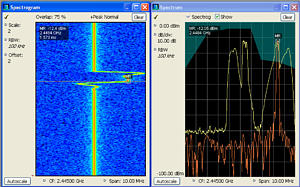

觸發和捕獲：頻率模板觸發功能監測域頻變化，把任何超限信號捕獲到存儲器中。三維頻譜圖畫面(左面的面板)顯示了頻率和幅度隨時間變化情況。通過在頻譜圖中選擇頻譜超限觸發FMT的時點，頻域視圖(右面的面板)會自動更新，在該時點上顯示詳細的頻譜視圖。
分析
RSA6100A 系列引入了多種分析功能，對處理元器件或RF 系統設計、集成和性能檢驗的工程師或處理網絡、頻譜監測或監控的運營工程師，提高了他們的工作效率。除頻譜分析外，頻譜圖同時顯示頻率和幅度隨時間變化情況。可以在頻域、相位域、幅度域和調制域中進行時間相關測量。這特別適合包括跳頻、脈沖特點、調制切換、穩定時間、帶寬變化和間歇性信號的信號分析工作。
Windows XP環境提供數量不限的分析窗口，所有窗口都在時間上相關，使得多域分析變得更加簡便，并可以更深入地查看信號行為。滿足用戶偏好(鍵盤、前面板、觸摸屏和鼠標)的用戶界面，使得新用戶和資深用戶都能輕松使用RSA6100A系列。
多種選項，針對特定應用訂制RSA
RSA6100A 系列提供了多種選項，可以滿足特定應用需求，包括雷達檢定、通信系統設計、認識無線電或軟件定義的無線電研究或頻譜管理。
下列是標配和所有選件測試功能簡介：
| 測量功能 | 測量項目 |
|---|---|
| 頻譜分析儀測量 | 通道功率, 鄰道功率, 多載波鄰道功率泄漏比, 占用帶寬, xdB Down, dBm/Hz 標記, dBc/Hz 標記 |
| 時域和統計測量 | RF I/Q 隨時間變化, 功率隨時間變化, 頻率隨時間變化, 相位隨時間變化, CCDF, 峰值均值比 |
| 雜散信號搜索測量 | 最多20個頻段范圍, 用戶可以在每個范圍內選擇檢波器(峰值, 均值, 準峰值), 濾波器(RBW, CISPR, MIL)和VBW。線性或?qū)?shù)頻率標度。絕對功率或相對于載波的測量和違規。以表格形式確定最多 999 個雜散 ，可以導出為CSV 格式 |
| 相噪和抖動測量(選項11) | 10 Hz-1 GHz 頻率偏置范圍, 對數頻率標度。 曲線: 2 條: ± 峰值曲線, 均值曲線, 曲線平滑和平均 |
| 高級脈沖測量套件(選項20) | 上升時間, 下降時間, 脈寬, 脈沖峰值功率, 平均功率, 紋波, 脈沖重復間隔, 占空比, 脈沖到脈沖相 位, 脈沖到脈沖頻率, 脈沖頻率偏差, 脈沖頻率誤差, 脈沖相位偏差, 脈沖相位誤差, 頂降, 脈沖時間, 趨勢, 趨勢FFT |
| 通用數字調制分析(選項21) | 誤差矢量幅度(EVM) (RMS, 峰值, EMV對時間), 幅度誤差(RMS, 峰值, 幅度誤差對時間), 相位誤差 (RMS, 峰值, 相位誤差對時間), 原點偏置, 頻率誤差, 增益失衡, 正交誤差, Rho, 星座圖, 符號表 |
| RSAVu 分析軟件 | W-CDMA, HSUPA. HSDPA, GSM/EDGE, CDMA2000 1x, CDMA2000 1xEV-DO, RFID, 相噪, 抖動, IEEE 802.11 a/b/g/n WLAN, IEEE 802.15.4 OQPSK (Zigbee), 音頻分析 |
| 分析軟件(RSAIQWIMAX) | 支持WiMAX 802.16-2004 和802.16.e 標準 |
| 分析軟件(RSALTE) | 支持3GPP Release 8 LTE 標準 |
受益于RSA6100A 系列主要標配功能和選項的應用實例：
| 分析功能 | RF 調試 | 蜂窩, WLAN, 通用通信 |
雷達, 脈沖式信號 |
監控 頻譜監測 |
|---|---|---|---|---|
| DPX™ 頻譜處理 | X | X | X | X |
| 頻率模板觸發 (選項02) | X | X | X | X |
| 110 MHz 采集帶寬 (選項110) | X | X | X | X |
| 頻譜圖 | X | X | X | X |
| 多域相關 | X | X | X | X |
| 使用用戶自定義頻率區域、 濾波器類型、極限搜索雜散信號 |
X | X | X | X |
| 準峰值檢測器、CISPR 和-6 dB 濾波器， 用于EMI 診斷和調試 |
X | X | X | X |
| 內部前置放大器 (選項11) | X | X | X | X |
| 頻率模板觸發 (選項01) | X | X | X | X |
| 數字IQ 和模擬IF 輸出(選項05) | X | X | X | X |
| 可拆卸硬盤 (選項06) | X | X | ||
| 相噪和抖動測量 (選項11) | X | X | X | X |
| 高級(脈沖式)信號分析 (選項20) | X | X | ||
| 通用數字調制分析(選項 21) | X | X | X | X |
| 110 MHz 采集帶寬(選項 110) | X | X | X | X |
| RSAVu 分析軟件 | X | X | X |

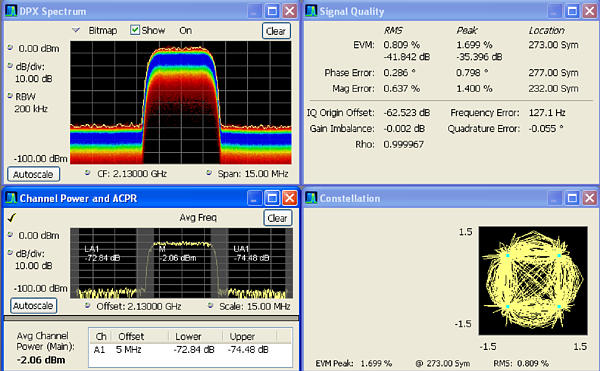

時間相關的多域視圖可以以全新的方式查看傳統分析解決方案不可能查看的設計或運維問題。這里在一個采集上執行ACLR 和矢量調制質量(選項21)測量，并結合使用DPXTM 頻譜畫面的連續監測功能。

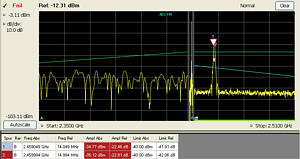

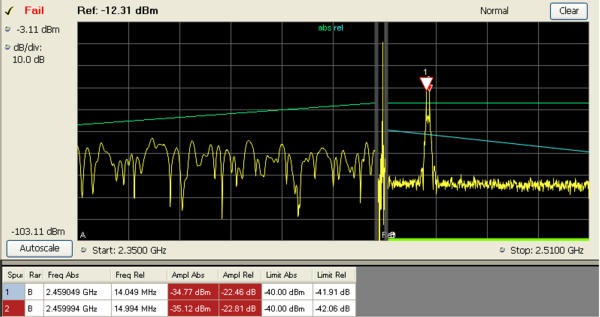

雜散信號搜索－用戶可以配置雜散信號搜索測量，標出最多999個極限線路違規。

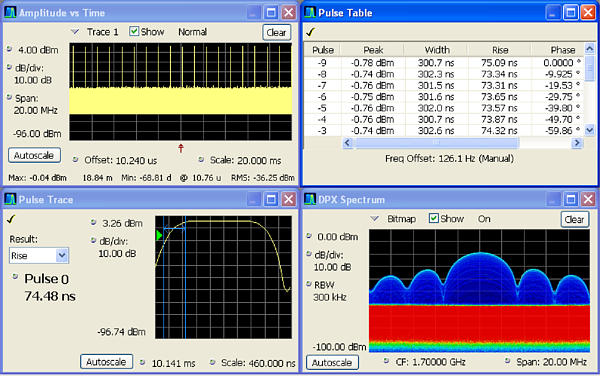

高級信號分析套件(選項20)中提供的脈沖測量功能：可以看到一個脈沖串(左上方)，并提供峰值功率、脈寬、上升時間和脈沖到脈沖相位等測量數據(右上方)。左下方是脈沖上升時間的詳細視圖，DPX 畫面在右下方監視著頻譜。
特點
頻率相關特點
| 頻率范圍 | 9 kHz - 6.2/14 GHz (RSA6106A/ RSA6114A)。 |
| 初始中心頻率設置精度 | 10 分鐘預熱后10-7 范圍內。 |
| 中心頻率設置分辨率 | 0.1 Hz。 |
| 頻率標記讀數精度 |
±(RE x MF + 0.001 x 跨度 + 2) Hz。 RE: 參考頻率誤差。 |
| 跨度精度 | ± 0.3% (自動模式)。 |
| 參考頻率 | 在校準時初始精度:1 x 10-7 (在10分鐘預熱后)。 每天老化:1 x 10-9 (在運行30 天后)。 每年老化 :3 x 10-7 (在運行10 年后)。 溫度漂移:2 x 10-8 (0 - 50℃)。 總頻率誤差:4 x 10-7 (校準后10 年內, 典型值)。 累積誤差(溫度+ 老化):4 x 10-7 (在校準后10 年內，典型值)。 |
| 參考輸出電平 | >0 dBm(已經選擇內部參考源)。 |
| 參考輸出電平(環通) | 從Ext Ref In 到Ref 輸出 為0 dB 標稱增益, +15 dBm 最大輸出。 |
| 外部參考輸入頻率 | 1 - 25 MHz (1 MHz 步進) + 1.2288 MHz, 4.8 MHz 和19.6608 MHz。 |
| 外部參考輸入頻率要求 | 必須位于聲稱頻率輸入的± 3x10-7 范圍內。 雜散輻射在100 kHz 偏置范圍內<-80 dBc。 輸入電平范圍: -10 dBm 到+6 dBm。 |
觸發相關特點
| 承購方式 | 唯一或連續，自流或者觸發 |
| 觸發器事件來源 | 觸發1 (前面)，觸發器2/Gate (后方)，線 |
| 觸發器類型 | 水平或頻率面具 |
| 觸發器設置 | 觸發位置settable從0到100%總承購 長度 |
| 觸發器組合邏輯 | Trig 1和Trig 2/Gate也許被定義作為觸發器事件 |
| 觸發器延遲 | |
| 范圍 | 20 ns到60 s |
| 決議 | 20 ns |
| 不確定性 | ±20 ns |
功率電平觸發
| 平實范圍 | 0 dB到- 100 dB從假定水準基點 |
| 準確性 | (為觸發器水平>30 dB在噪聲地板， 10%到 90%之上信號電平) |
| ±0.5 dB (平實≥ - 50 dB從假定水準基點) | |
| ±1.5 dB (從 <- 50 dB對- 70 dB從 假定水準基點) | |
| 觸發器帶寬范圍 | (在最大承購BW) |
| 4千赫到20兆赫+大開(標準) | |
| 11千赫到60兆赫+大開(選擇110) | |
| 觸發器位置時間不確定性 | |
| 40兆赫承購BW， 20兆赫BW ： | 不確定性= ±10 ns |
| 110兆赫承購BW， 60兆赫BW (Opt。 110): | 不確定性= ±3.3 ns |
| 觸發器重整軍備時間，極小值(快速框架`在’) | |
| 10兆赫承購BW | ≤ 25 μS |
| 40兆赫承購BW | ≤10 μS |
| 110兆赫承購BW (Opt。 110) | ≤ 5 μS |
頻率面具觸發器(Opt. 02)
| 面具形狀 | 用戶定義 |
| 面具點水平分辨 | <0.2%間距 |
| 平實范圍 | 0 dB到- 80 dB從假定水準基點 |
| 平實Accuracy*1 | |
| 0到- 50 dB從假定水準基點： | ± (如果頻率響應+ 1.0 dB) |
| - 50 dB到- 70 dB從假定水準基點： | ± (如果頻率響應+ 2.5 dB) |
| 間距范圍 | 100赫茲到40兆赫(選擇02) |
| 100赫茲到110兆赫(選擇02 +選擇110) | |
| 極小的事件期間為100%觸發器的 可能性 | (在最大承購帶寬) |
| 30.7 μSec (10.3 μSec， Opt。 02 + Opt。 110) | |
| 持續較不比極小的事件期間規格的事件 導致被貶低的頻率面具觸發器準確性 | |
| 觸發器位置不確定性 | |
| 間距= 40兆赫 | ±12.8 μS |
| 間距= 110兆赫 | ±5.12 μS (選擇02 +選擇110) |
| Mask Shape | User-defined |
| Mask Point Horizontal Resolution | <0.2% of span |
| Level Range | 0 dB to –80 dB from reference level |
| Level Accuracy*1 | |
| 0 to –50 dB from reference level: | ±(IF Frequency Response + 1.0 dB) |
| –50 dB to –70 dB from reference level: | ±(IF Frequency Response + 2.5 dB) |
| Span Range | 100 Hz to 40 MHz (Option 02) |
| 100 Hz to 110 MHz (Option 02 + Option 110) | |
| Minimum Event Duration for 100% Probability of Trigger | (at maximum acquisition bandwidth) |
| 30.7 μSec (10.3 μSec, Opt. 02 + Opt. 110) | |
| Events lasting less than minimum event duration specification will result in degraded Frequency Mask Trigger accuracy | |
| Trigger Position Uncertainty | |
| Span = 40 MHz | ±12.8 μS |
| Span = 110 MHz | ±5.12 μS (Option 02 + Option 110) |
*1 for masks >30 dB above noise floor
| 外部觸發1 | |
| 門限電壓 | –2.5 V to +2.5 V |
| Level Setting Resolution | 0.01 V |
| Trigger Position Timing Uncertainty (50 Ω input impedance) | |
| 40 MHz acquisition BW, 40 MHz Span: | Uncertainty = ±20 ns |
| 110 MHz acquisition BW, 110 MHz Span (Opt 110): | Uncertainty = ±12 ns |
| Input Impedance | Selectable 50 Ω/5 kΩ Impedance (nominal) |
| 外部觸發2 | |
| Threshold Voltage | Fixed, TTL |
| Input Impedance | 10 kΩ (nominal) |
| Trigger State Select | High, low |
| 觸發輸出 | |
| Voltage (Output Current <1 mA) | High: >2.0 V; Low: <0.4 V (LVTTL) |
捕獲相關特點
| 實時采集帶寬 | 40 MHz (110 MHz, Opt. 110) |
| 模數轉換器 | 100 MS/s 14 bit (Optional 300 MS/s, 12 bit, Opt. 110) |
| 采集存儲器容量 | 256 MB (1 GB, Opt. 02) |
| 最小采集長度 | 2 Samples |
| 采集長度設置分辨率 | 1 Sample |
| 快速幀采集模式 | > 64,000 Records can be stored in a single acquisition (for Pulse Measurements and Spectrogram Analysis) |
存儲深度(時間)和最小時域分辨率
| 采集帶寬 |
采集帶寬取樣速率 (對I 和Q)) |
采集 時間 |
采集 時間 (選項 02) |
最小 時間 分辨率 |
|---|---|---|---|---|
| 110 MHz (Opt. 110) | 150 MS/s | 0.426 s | 1.706 s | 6.6667 ns |
| 60 MHz (Opt. 110) | 75 MS/s | 0.852 | 3.413 | 13.33 ns |
| 40 MHz | 50 MS/s | 1.28 s | 5.12 s | 20 ns |
| 20 MHz | 25 MS/s | 2.56 s | 10.2 s | 40 ns |
| 10 MHz | 12.5 MS/s | 5.12 s | 20.5 s | 80 ns |
| 5 MHz | 6.25 MS/s | 10.2 s | 41.0 s | 160 ns |
| 2 MHz*2 | 3.125 MS/s | 10.2 s | 41.0 s | 320 ns |
| 1 MHz | 1.56 MS/s | 20.5 s | 81.9 s | 640 ns |
| 500 kHz | 781 kS/s | 41.0 s | 164 s | 1.28 μs |
| 200 kHz | 390 kS/s | 81.9 s | 328 s | 2.56 μs |
| 100 kHz | 195 kS/s | 164 s | 655 s | 5.12 μs |
| 50 kHz | 97.6 kS/s | 328 s | 1310 s | 10.24 μs |
| 20 kHz | 48.8 kS/s | 655 s | 2620 s | 20.48 μs |
| 10 kHz | 24.4 kS/s | 1310 s | 5240 s | 40.96 μs |
| 5 kHz | 12.2 kS/s | 2620 s | 10500 s | 81.92 μs |
| 2 kHz | 3.05 kS/s | 10500 s | 41900 s | 328 μs |
| 1 kHz | 1.52 kS/s | 21000 s | 83900 s | 655 μs |
| 500 Hz | 762 S/s | 41900 s | 168000 s | 1.31 ms |
| 200 Hz | 381 S/s | 83900 s | 336000 s | 2.62 ms |
| 100 Hz | 190 S/s | 168300 s | 671000 s | 5.24 ms |
*2在≤2 MHz的跨度中，會存儲分辨率更高的數據，但會減少采集時間。.
分析相關特點
| 按域劃分的視圖 | 視圖 |
|---|---|
| Power and Frequency Measurements | Channel Power, Adjacent Channel Power, Multi Carrier Adjacent Channel Power/Leakage Ratio, Occupied Bandwidth, xdB Down, dBm/Hz Marker, dBc/Hz Marker |
| 時間 Domain and Statistical Measurements | RF I/Q vs. 時間, Power vs. 時間, Frequency vs. 時間, Phase vs. 時間, CCDF, Peak-to-Average Ratio |
| Phase Noise and Jitter Measurements (Opt. 11) |
10 Hz to 1 GHz Frequency Offset range, Log Frequency Scale Traces: 2: ± Peak Trace, Average Trace, Trace Smoothing and Averaging, |
| Spur Search Measurement | Up to 20 ranges, User-selected detectors(peak, average, QP), filters (RBW, CISPR, MIL) and VBW in each range. Measurements and violations in absolute power or relative to a carrier. Up to 999 violations identified in tabular form for export in CSV format |
| Advanced Measurements Suite (Option 20) | Rise 時間, Fall 時間, Pulse Width, Pulse Peak Power, Average Power, Ripple, Pulse Repetition Interval, Duty Cycle, Pulse-Pulse Phase, Pulse-Pulse Frequency, Pulse Frequency Deviation, Pulse Frequency Error, Pulse Phase Deviation, Pulse Phase Error, Droop, Trend, FFT of Trend |
| General Purpose Digital Modulation Analysis (Option 21) | Error Vector Magnitude (EVM) (RMS, Peak, EVM vs. 時間), Modulation Error Ratio (MER), Magnitude Error (RMS, Peak, Mag Error vs. 時間), Phase Error (RMS, Peak, Phase Error vs. 時間), Origin Offset, Frequency Error, Gain Imbalance, Quadrature Error, Rho, Constellation, Symbol Table |
| RSAVu Analysis Software | W-CDMA, HSUPA. HSDPA, GSM/EDGE, CDMA2000 1x, CDMA2000 1xEV-DO, RFID, Phase Noise, Jitter, IEEE 802.11 a/b/g/n WLAN, IEEE 802.15.4 OQPSK (Zigbee) |
| Analysis SW (RSAIQWIMAX) | WiMAX 802.16-2004 and 802.16.e standards support |
| Displays by Domain | Views |
|---|---|
| Frequency |
Spectrum (Amplitude vs. Frequency) DPX™ Spectrum Display (Live RF Color-Graded Spectrum) Spectrogram (Amplitude vs. Frequency over 時間) Phase Noise (Phase Noise and Jitter Measurement) (Opt. 11) |
| 時間 and Statistics |
Frequency vs. 時間 Amplitude vs. 時間 Phase vs. 時間 RF I&Q vs. 時間 時間 Overview CCDF Peak-to-Average-Ratio |
| Advanced Measurements Suite (opt. 20) |
Pulse Results Table Pulse Trace (Selectable by pulse number) Pulse Statistics (Trend of Pulse Results and FFT of Trend) |
| Digital Demod (Option 21) |
Constellation diagram EVM vs. 時間 Symbol Table (Binary or Hexadecimal) Magnitude and Phase error versus 時間, and signal quality |
Spectrum Display Traces, Detectors, and Functions
| Traces | Three traces + 1 math waveform + 1 trace from spectrogram for spectrum display |
| Detector | Peak, – peak, average |
| Trace Functions | Normal, Average, Max Hold, Min Hold |
| Spectrum Trace Length | 801, 2401, 4001, 8001 or 10401 points |
RF Performance
Frequency
| Frequency Range | 9 kHz to 6.2/14 GHz (RSA6106A/RSA6114A) |
| Initial Center Frequency Setting Accuracy | Within 10-7 after 10 minute warm-up |
| Center Frequency Setting Resolution | 0.1 Hz |
| Frequency Marker Readout Accuracy | ±(RE × MF + 0.001 × Span + 2) Hz |
| RE | Reference Frequency Error |
| MF | Marker Frequency (Hz) |
| Span Accuracy | ±0.3% (Auto mode) |
| Reference Frequency | |
| Initial Accuracy at Cal | 1 x 10-7 (after 10 min. warmup) |
| Aging per Day | 1 x 10-9 (after 30 days of operation) |
| Aging per 10 Years | 3 x 10-7 (after 10 years of operation) |
| Temperature Drift | 2 x 10-8 (0 to 50 °C) |
| Cumulative Error (Temperature + Aging) | 4 x 10-7 (within 10 years after calibration, typical) |
| Reference Output Level | >0 dBm (internal reference selected) |
| Reference Output Level (Loop-through) | 0 dB nominal gain from Ext Ref In to Ref Output, +15 dBm max. output |
| External Reference Input Frequencies | 1 to 25 MHz (1 MHz steps) + 1.2288 MHz, 4.8 MHz, 19.6608 MHz |
| External Reference Input Frequency Requirements | Must be within ±3 × 10-7 of stated frequency input |
| Spurious | < –80 dBc within 100 kHz offset |
| Input Level Range | –10 dBm to +6 dBm |
Bandwidth
| Resolution Bandwidth | |
| Resolution Bandwidth Range (Spectrum Analysis) | 1 Hz to 5 MHz (1, 2, 3, 5 sequence, auto-coupled), or user-selected (arbitrary) |
| Resolution Bandwidth Shape | 1 Hz to 5 MHz - Approximately Gaussian, shape factor 4.1:1 (60:3 dB) ±10%, typical |
| Resolution Bandwidth Accuracy | 1 Hz to 5 MHz ±1% (Auto-coupled RBW Mode) |
| Alternative Resolution Bandwidth Types | Kaiser window (RBW), -6 dB Mil, CISPR, Blackman-Harris 4B Window, Uniform (none) Window, Flat-Top (CW Ampl.) Window, Hanning Window |
| Video Bandwidth (auto coupled) | |
| Video Bandwidth Range | 1 Hz to 5 MHz plus wide open |
| RBW/VBW Maximum | 10,000:1 |
| RBW/VBW Minimum | 1:1 plus wide open |
| Resolution | 5% of entered value |
| Accuracy (typical) | ±10% |
| 時間 Domain Bandwidth | |
| 時間 Domain Bandwidth Range | At least 1/10 to 1/10,000 of Acquisition Bandwidth, 1 Hz Minimum |
| 時間 Domain BW Shape | ≤10 MHz, approximately Gaussian, shape factor 4.1:1(60:3 dB), ±10% typical |
| 20 MHz (60 MHz, Opt 110), shape factor <2.5:1 (60:3 dB) typical | |
| 時間 Domain Bandwidth Accuracy | 1 Hz to 20 MHz, and (>20 MHz to 60 MHz Opt 110), ±10% |
Minimum Settable Spectrum Analysis RBW vs. Span
| Frequency Span | RBW |
|---|---|
| >10 MHz | 100 Hz |
| >1 MHz to 10 MHz | 10 Hz |
| ≤1 MHz | 1 Hz |
DPX™ Digital Phosphor Spectrum Processing
| Spectrum Processing Rate | >48,828/s |
| Trace Processing | Color-graded bit map, +Peak, –Peak, Average |
| Minimum Signal Duration for 100% Probability of Detection (Max-hold On) | 31 μs (24 μs Opt. 110) |
| Span Range | 100 Hz to 40 MHz (110 MHz with Opt. 110) |
| Resolution BW Accuracy | 7% |
Resolution BW Range vs. Span (DPX™)
| Span | RBW (Min) |
|---|---|
| 110 MHz | 600 kHz |
| 55 MHz | 300 kHz |
| 40 MHz | 200 kHz |
| 20 MHz | 100 kHz |
| 10 MHz | 50 kHz |
| 5 MHz | 25 kHz |
| 2 MHz | 13 kHz |
| 1 MHz | 7 kHz |
| 500 kHz | 4 kHz |
| 200 kHz | 2 kHz |
| 100 kHz | 800 Hz |
| 50 kHz | 400 Hz |
| 20 kHz | 200 Hz |
| 10 kHz | 100 Hz |
| 5 kHz | 50 Hz |
| 2 kHz | 13 Hz |
| 1 kHz | 7 Hz |
| 500 Hz | 4 Hz |
| 200 Hz | 2 Hz |
| 100 Hz | 1 Hz |
Stability
Residual FM - <2 Hzp-p in 1 second (95% confidence, typical)
Phase Noise Sidebands, dBc/Hz at Specified Center Frequency (CF)
| Offset | CF = 1 GHz | CF = 2 GHz | CF = 6 GHz | CF = 10 GHz (RSA6114A) | |
|---|---|---|---|---|---|
| Spec | Typical | Typical | Typical | Typical | |
| 100 Hz | -80 | -86 | -80 | -70 | -64 |
| 1 kHz | -100 | -106 | -106 | -96 | -91 |
| 10 kHz | -106 | -110 | -110 | -107 | -106 |
| 100 kHz | -107 | -113 | -111 | -107 | -106 |
| 1 MHz | -128 | -134 | -133 | -132 | -132 |
| 6 MHz | -134 | -142 | -142 | -142 | -142 |
| 10 MHz | -134 | -142 | -142 | -142 | -142 |
Typical phase noise performance as measured by Opt. 11
Amplitude
(Specifications excluding mismatch error)
| Measurement Range | Displayed average noise level to maximum measurable input |
| Input Attenuator Range | 0 dB to 75 dB, 5 dB step |
| Maximum Safe Input Level | |
| Average Continuous (RF ATT ≥10 dB, Pre-amp OFF) | +30 dBm |
| Average Continuous (RF ATT ≥10 dB, Pre-amp ON) | +20 dBm |
| Pulsed RF (RF ATT ≥ 30 dB, PW <5 μs, 0.5% Duty Cycle) | 75 W |
| Maximum Measurable Input Level | |
| Average Continuous (RF ATT: Auto) | +30 dBm |
| Pulsed RF (RF ATT: Auto, PW <5 μs, 0.5% Duty Cycle) | 75 W |
| MAX DC Voltage | ±40 V |
| Log Display Range | 0.01 dBm/div to 20 dB/div |
| Display Divisions | 10 divisions |
| Display Units | dBm, dBmV, Watts, Volts, Amps, dBuW, dBuV, dBuA, dBW, dBV, dBV/m, and dBA/m |
| Marker Readout Resolution, dB units | 0.01 dB |
| Marker Readout Resolution, Volts units | Reference level dependent, as small as 0.001 μV |
| Reference Level Setting Range | 0.1 dB step, –170 dBm to +50 dBm (minimum ref. level -50 dBm at center frequency <80 MHz) |
| Level Linearity | ±0.1 dB (0 to –70 dB from Reference Level) |
Frequency Response
| 18 °C to 28 °C, Atten.= 10 dB, Preamp Off | |
| 10 MHz - 3 GHz | ±0.5 dB |
| >3 GHz - 6.2 GHz | ±0.8 dB |
| > 6.2 GHz - 14 GHz (RSA6114A) | ±1.0 dB |
| 5 °C to 50 °C, All Attenuator settings (typical) | |
| 9 kHz - 3 GHz | ±0.7 dB |
| >3 GHz - 6.2 GHz | ±0.8 dB |
| > 6.2 GHz - 14 GHz (RSA6114A) | ±2.0 dB |
| Preamp (Opt. 01) ON (Att.= 10 dB) | |
| 10 MHz - 3 GHz | ±0.7 dB |
| Absolute Amplitude Accuracy at Calibration Point (100 MHz, –20 dBm signal, 10 dB ATT, 18 °C to 28 °C) | ±0.31 dB |
| Input Attenuator Switching Uncertainty | ±0.2 dB |
| Absolute Amplitude Accuracy at Center Frequency, 95% confidence*3 (typical) | |
| 10 MHz to 3 GHz | ±0.5 dB |
| 3 GHz to 6.2 GHz | ±0.8 dB |
| 6.2 GHz to 14 GHz | ±1.5 dB |
| VSWR (typical) | (Att = 10 dB, Preamp OFF, CF set within 200 MHz of VSWR test frequency) |
| 10 MHz to 4 GHz | <1.6:1 |
| 4 GHz to 6.2 GHz | <1.8:1 |
| 6.2 GHz to 14 GHz (RSA6114A only) | <1.9:1 |
| VSWR with Preamp (typical) | (Att = 10 dB, Preamp ON, CF set within 200 MHz of VSWR test frequency |
| 10 MHz to 3 GHz | <1.9:1 |
*3 18 °C to 28 °C, Reference level ≤–15 dBm, Attenuator Auto-Coupled, signal level –15 dBm to –50 dBm. 10 Hz ≤ RBW ≤ 1 MHz, after Alignment performed)
Noise and Distortion
3rd Order Inter-modulation Distortion*4
| Frequency | 3rd order IM | 3rd Order Intercept | 3rd Order Intercept (typical) |
|---|---|---|---|
| 2.130 GHz | <–80 dBc | +15 dBm | +17 dBm |
*4 Each signal level –25 dBm, Ref Level –20 dBm, Attenuator = 0 dB, 1 MHz tone separation.
Note: 3rd order intercept point is calculated from 3rd order intermodulation performance.
2nd Harmonic Distortion*5
| Frequency | 2nd Harmonic Distortion, Typical |
|---|---|
| 10 MHz - 3.1 GHz | <–80 dBc |
| >3.1 GHz - 7 GHz (RSA6114 Only) | <–80 dBc |
*5 –40 dBm at RF input, Attenuator = 0, Preamp Off, typical
Displayed Average Noise Level*6, Preamp OFF
| Frequency | Specification | Typical |
|---|---|---|
| 9 kHz - 10 MHz | –97 dBm/Hz | –100 dBm/Hz |
| >10 MHz - 100 MHz | –147 dBm/Hz | –149 dBm/Hz |
| >100 MHz - 2.3 GHz | –149 dBm/Hz | –151 dBm/Hz |
| >2.3 GHz - 4 GHz | –147 dBm/Hz | –149 dBm/Hz |
| >4 GHz - 6.2 GHz | –143 dBm/Hz | –145 dBm/Hz |
| RSA6114A Only | ||
| 4 GHz - 7 GHz | –143 dBm/Hz | –145 dBm/Hz |
| >7 GHz - 14 GHz | –135 dBm/Hz | –137 dBm/Hz |
*6 Measured using 1 kHz RBW, 100 kHz Span, 100 Averages, Minimum Noise Mode, Input terminated
Displayed Average Noise Level*6, Preamp ON (Opt. 01)
| Frequency | Specification | Typical |
|---|---|---|
| 10 MHz - 80 MHz | –160 dBm/Hz | –170 dBm/Hz |
| >80 MHz - 1 GHz | –165 dBm/Hz | –170 dBm/Hz |
| 1 GHz - 2 GHz | –166 dBm/Hz | –170 dBm/Hz |
| 2 GHz - 3 GHz | –164 dBm/Hz | –170 dBm/Hz |
Residual Response*7
| Frequency | Spec |
|---|---|
| 40 MHz - 200 MHz | –90 dBm |
| >200 MHz - 6.2 GHz | –95 dBm |
| >6.2 GHz - 14 GHz (RSA6114A) | –95 dBm (typical) |
*7 Input Terminated, RBW = 1 kHz, Atten = 0 dB
Image Response*8
| Frequency | Spec |
|---|---|
| 9 kHz - 6.2 GHz | <–80 dBc |
| 6.2 GHz - 8 GHz (RSA6114A) | <–80 dBc |
| >8 GHz to 14 GHz (RSA6114A) | <–76 dBc |
*8 Ref = –30 dBm, Atten = 10 dB, RF input Level = –30 dBm, RBW = 10 Hz
Spurious Response with Signal*9
| Frequency |
Span ≤40 MHz, swept spans >40 MHz |
Option 110 40 MHz < span ≤ 110 MHz | ||
|---|---|---|---|---|
| Specification | Typical | Specification | Typical | |
| 10 MHz – 6.2 GHz | –73 dBc | –78 dBc | –73 dBc | –75 dBc |
| ≥6.2 GHz – 14 GHz (RSA6114A) | –70 dBc | –75 dBc | –70 dBc | –75 dBc |
*9 RF input level, –15 dBm, Atten = 10 dB, Offset ≥400 kHz, Mode: Auto. Input signal at center frequency. Performance level for signals offset from center frequency typically the same.
Spurious response with signal at 4.75 GHz – <-57 dBc (RF input level, -30 dBm) - <–57 dBc (RF input level, -30 dBm)
Adjacent Channel Leakage Ratio Dynamic Range*10
| Signal Type, Measurement Mode | ACLR, Typical | |
|---|---|---|
| Adjacent | Alternate | |
| 3GPP Downlink, 1 DPCH | ||
| Uncorrected | –70 dB | –70 dB |
| Noise Corrected | –79 dB | –79 dB |
| 3GPP TM1 64 channel | ||
| Uncorrected | –69 dB | –69 dB |
| Noise Corrected | –78 dB | –78 dB |
*10 Measured with test signal amplitude adjusted for optimum performance. (CF = 2.13 GHz,)
IF Frequency Response and Phase Linearity*11
| Frequency Range | Specification | Typical (rms) | |
|---|---|---|---|
| Freq (GHz) | Acq. Bandwidth | Specification | Amplitude/Phase |
| 0.01 - 3.0*12 | ≤300 kHz | ±0.20 dB | 0.05 dB/0.5° |
| 0.03 - 3.0 | ≤40 MHz | ±0.50 dB | 0.18 dB/1.0° |
| >3 - 6.2*12 | ≤300 kHz | ±0.20 dB | 0.05 dB/0.5° |
| >3 - 6.2 | ≤40 MHz | ±0.50 dB | 0.26 dB/1.0° |
| >6.2 - 14 (RSA6114A) | ≤300 kHz | ±0.20 dB | 0.05 dB/1.0° |
| >6.2 - 14 (RSA6114A) | ≤40 MHz | ±0.80 dB | 0.40 dB/1.0° |
| Option 110 | |||
| 0.07 – 3.0 | ≤80 MHz | ±0.90 dB | 0.40 dB/1.5° |
| 0.07 - 3.0 | ≤110 MHz | ±0.90 dB | 0.40 dB/2.0° |
| >3 - 6.2 | ≤80 MHz | ±0.90 dB | 0.60 dB/1.5° |
| >3 - 6.2 | ≤110 MHz | ±0.90 dB | 0.60 dB/2.0° |
| >6.2 - 14 (RSA6114A) | ≤80 MHz | ±1.5 dB | 0.70 dB/1.5° |
| >6.2 to 14 (RSA6114A) | ≤110 MHz | ±1.5 dB | 1.0 dB/2.25° |
*11 Amplitude flatness and phase deviation over the capture BW, includes RF frequency response. Attenuator setting: 10 dB.
*12 High Dynamic Range Mode Selected.
Advanced Measurement Suite (Opt. 20)
| Measurements | Average On Power, Peak Power, Average Transmitted Power, Pulse Width, Rise 時間, Fall 時間, Repetition Interval (seconds), Repetition Interval (Hz), Duty Factor (%), Duty Factor (ratio), Ripple, Droop, Pulse-Pulse Frequency Difference, Pulse-Pulse Phase Difference, RMS Frequency Error, Max Frequency Error, RMS Phase Error, Max Phase Error, Frequency Deviation, Phase Deviation, 時間Stamp |
| Minimum Pulse Width for Detection | 150 ns (standard), 50 ns (Opt. 110 |
| Number of pulses | 1 to 10,000 |
| System Rise 時間 (typical) | <25 ns (standard), <10 ns (Opt. 110) |
| Pulse Measurement Accuracy | Signal Conditions: Unless otherwise stated, Pulse Width > 450 ns (150 ns, Opt. 110), S/N Ratio ≥30 dB, Duty Cycle 0.5 to 0.001, temperature 18 °C to 28 °C |
| Measurement | Accuracy (Typical) |
|---|---|
| Average ON Power*13 | ±0.3 dB + Absolute Amplitude Accuracy |
| Average Transmitted Power*13 | ±0.4 dB + Absolute Amplitude Accuracy |
| Peak Power*13 | ±0.4 dB + Absolute Amplitude Accuracy |
| Pulse Width | ±3% of reading |
| Duty Factor | ±3% of reading |
Frequency and Phase Error Referenced to Non-chirped Signal
At stated frequencies and measurement bandwidths*14, 95% confidence.
| CF 2 GHz | CF: 10 GHz | |||||
|---|---|---|---|---|---|---|
| Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | |
| BW: 20 MHz | ± 50 kHz | ± 100 kHz | ± 1.7 ◦ | ± 100 kHz | ± 200 kHz | ± 3.2 ◦ |
| BW: 40 MHz | ± 50 kHz | ± 100 kHz | ± 1.7 ◦ | ± 125 kHz | ± 200 kHz | ± 3.7 ◦ |
| BW: 60 MHz (Opt. 110) | ± 200 kHz | ± 350 kHz | ± 1.9 ◦ | ± 450 kHz | ± 1.0 MHz | ± 4 ◦ |
| BW: 110 MHz (Opt. 110) | ± 300 kHz | ± 550 kHz | ± 2 ◦ | ± 700 kHz | ± 1.3 MHz | ± 5 ◦ |
Frequency and Phase Error Referenced to a Linear Chirp
At stated frequencies and measurement bandwidths*14, 95% confidence.
| CF 2 GHz | CF: 10 GHz | |||||
|---|---|---|---|---|---|---|
| Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | Abs. Freq Err (rms) | Pulse-Pulse Freq | Pulse-Pulse Phase | |
| BW: 20 MHz | ± 200 kHz | ± 100 kHz | ± 2.2 ◦ | ± 300 kHz | ± 200 kHz | ± 4 ◦ |
| BW: 40 MHz | ± 300 kHz | ± 100 kHz | ± 2.2 ◦ | ± 400 kHz | ± 250 kHz | ± 5 ◦ |
| BW: 60 MHz (Opt. 110) | ± 900 kHz | ± 550 kHz | ± 2.4 ◦ | ± 1.3 MHz | ± 1.1 MHz | ± 6.5 ◦ |
| BW: 110 MHz (Opt. 110) | ± 1.9 MHz | ± 650 kHz | ± 2.5 ◦ | ± 2.0 MHz | ± 1.6 MHz | ± 7.0 ◦ |
*13 Pulse width >300 ns (100 ns, Opt. 110).
*14 Pulse ON power ≥ –20 dBm, signal peak at Reference Level, Attenuator = Auto, tmeas – treference ≤10 ms, Frequency Estimation: Manual. Pulse-to-Pulse Measurement 時間 position excludes the beginning and ending of the pulse extending for a 時間 = (10/Measurement BW) as measured from 50% of the t(rise) or t(fall).Absolute Frequency Error determined over center 50% of pulse.
Note: Signal type: Linear Chirp, Peak-to-peak Chirp Deviation: ≤0.8 *Measurement BW
Digital Modulation Analysis (Option 21)
| Modulation Formats | BPSK, QPSK, 8PSK, 16QAM, 32 QAM, 64QAM, 128 QAM, 256QAM, MSK, GMSK, π/4DQPSK, DQPSK, D8PSK |
| Analysis Period | Up to 80,000 Samples |
| Filter Types | |
| Measurement filters | Square root raised cosine, raised cosine, Gaussian, rectangular, IS-95, IS-95 EQ, none |
| Reference filters | Raised cosine, Gaussian, rectangular, IS-95, none |
| Alpha/B*T range | 0.001 to 1, 0.001 step |
| Measurements | Constellation, Error Vector Magnitude (EVM) vs. 時間, Modulation Error Ratio (MER), Magnitude Error vs. 時間, Phase Error vs. 時間, Signal Quality, Symbol Table |
| Symbol Rate Range | 1 kSymbols/s to 100 MSymbols/s (Modulated signal must be contained entirely within acquisition BW of RSA6100A) |
Demodulation Accuracy
Digital (Option 21)
QPSK Residual EVM (Typical)*15
| Symbol Rate | Residual EVM |
|---|---|
| 100 kSymbols/s | <0.6% |
| 1 MSymbol/s | <0.7% |
| 10 MSymbol/s | <1.0% |
| 30 MSymbol/s | <3.0% |
| 80 MSymbols/s (Opt. 110) | <3.0% |
*15 锎= 2千兆赫，測量過濾器=根被上升的余弦，參考過濾器=提高了余弦，分析長度= 200個標志
256 QAM Residual EVM (Typical)*16
| Symbol Rate | Residual EVM |
|---|---|
| 10 MSymbol/s | <1.0% |
| 30 MSymbol/s | <3.0% |
| 80 MSymbols/s (Opt. 110) | <3.0% |
*16 锎= 2千兆赫，測量過濾器=根提高了余弦，參考過濾器=被上升的余弦，分析長度= 400個標志
輸入和輸出
| 面板 | |
| RF輸入連接器 | N類型， 50 Ω |
| 觸發器 | BNC，高>2.0 v，低： <0.4 v，輸出電流 1 mA (LVTTL) |
| 觸發器 | BNC， 50 Ω/5 KΩ阻抗(有名無實)， ±5 v最大輸入， - 2.5 V到+2.5 V觸發器水平 |
| USB口岸 | 1個USB 2.0， 1個USB 1.1 |
| 音頻 | 演講人 |
| 后面板 | |
| 模擬IF 和數字IQ 輸出(選項05) | |
| 模擬IF 輸出 (選項05) | |
| 頻率 | 500 MHz (±1 MHz based on center frequency selection) |
| 輸出電平 | 0 to –10 dBm for peak signal level of –20 dBm at RF mixer (typical) |
| Filter Control | Wide open (square top) or 60 MHz Gaussian |
| Bandwidth (Wide Open) | >150 MHz (typical) |
| Bandwidth (Gaussian) | 60 MHz, Gaussian to –12 dB |
| 數字IQ 輸出 ( (選項05) | |
| 連接器類型 | MDR (3M) 50 pin x 2 |
| 數據輸出 | Data is corrected for amplitude and phase response in real 時間 |
| I data | 16 bit LVDS; Q data: 16 bit LVDS |
| 控制 輸出 | Clock: LVDS, MAX 50 MHz (150 MHz, 選項110) DV (Data Valid), MSW (Most Significant Word) indicators, LVDS |
| 控制 Input | IQ data 輸出 enabled, connecting GND enables 輸出 of IQ data |
| 時鐘上升沿到數據轉換時間(保持時間) | 8.4 ns (typical, standard), 1.58 ns (typical, 選項110) |
| 數據轉換到時鐘上升沿(建立時間) | 8.2 ns (typical, standard), 1.54 ns (typical, 選項110) |
| 10 MHz REF OUT | 50 Ω, BNC, >0 dBm |
| 外部 REF IN | 50 Ω, BNC, –10 dBm - +6 dBm, 1 MHz to 25 MHz in 1 MHz steps, plus 1.2288 MHz, 4.8 MHz, and 19.6608 MHz |
| 外部 REF IN 參考輸入頻率精度 | ≤ ±0.3 ppm |
| TRIG 2/Gate IN | BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V |
| GPIB Interface | IEEE 488.2 |
| LAN 以太網接口 | RJ45, 10/100/1000 Base-T |
| USB 端口 | USB 2.0, two ports |
| VGA 輸出 | VGA compatible, 15 DSUB |
| 音頻輸出 | 3.5 mm headphone jack |
| 噪聲源驅動器 | BNC, +28 V, 140 mA (nominal) |
| Front Panel | |
| RF Input Connector | N type, 50 Ω |
| Trigger Out | BNC, High >2.0 V, Low: <0.4 V, output current 1 mA (LVTTL) |
| Trigger In | BNC, 50 Ω/5 KΩ impedance (nominal), ±5 V Max Input, –2.5 V to +2.5 V trigger level |
| USB Ports | 1 USB 2.0, 1 USB 1.1 |
| Audio | Speaker |
| Rear Panel | |
| Analog IF and Digital IQ Output (Opt. 05) | |
| Analog IF Output (Opt. 05) | |
| Frequency | 500 MHz (±1 MHz based on center frequency selection) |
| Output Level | 0 to –10 dBm for peak signal level of –20 dBm at RF mixer (typical) |
| Filter Control | Wide open (square top) or 60 MHz Gaussian |
| Bandwidth (Wide Open) | >150 MHz (typical) |
| Bandwidth (Gaussian) | 60 MHz, Gaussian to –12 dB |
| Digital IQ Output (Opt. 05) | |
| Connector Type | MDR (3M) 50 pin x 2 |
| Data Output | Data is corrected for amplitude and phase response in real 時間 |
| I data | 16 bit LVDS; Q data: 16 bit LVDS |
| Control Output | Clock: LVDS, MAX 50 MHz (150 MHz, Opt. 110) DV (Data Valid), MSW (Most Significant Word) indicators, LVDS |
| Control Input | IQ data output enabled, connecting GND enables output of IQ data |
| Clock Rising Edge to Data Transition 時間 (hold 時間) | 8.4 ns (typical, standard), 1.58 ns (typical, Opt. 110) |
| Data Transition to Clock Rising Edge (setup 時間) | 8.2 ns (typical, standard), 1.54 ns (typical, Opt. 110) |
| 10 MHz REF OUT | 50 Ω, BNC, >0 dBm |
| External REF IN | 50 Ω, BNC, –10 dBm - +6 dBm, 1 MHz to 25 MHz in 1 MHz steps, plus 1.2288 MHz, 4.8 MHz, and 19.6608 MHz |
| External REF IN Frequency Accuracy Required | ≤ ±0.3 ppm |
| TRIG 2/Gate IN | BNC, High: 1.6 to 5.0 V, Low: 0 to 0.5 V |
| GPIB Interface | IEEE 488.2 |
| LAN Interface Ethernet | RJ45, 10/100/1000 Base-T |
| USB Ports | USB 2.0, two ports |
| VGA Output | VGA compatible, 15 DSUB |
| Audio out | 3.5 mm headphone jack |
| Noise Source Drive | BNC, +28 V, 140 mA (nominal) |
整體特點
| 溫度范圍 | |
| Operating | +5 °C to +50 °C. (+5 °C to +40 °C when accessing DVD) |
| Storage | –20 °C to +60 °C |
| 預熱時間 | 20 min. |
| 工作高度 | |
| Operating | up to 3000 m (Approximately 10,000 ft.) |
| Non-operating | up to 12,190 m (40,000 ft.) |
| 相對濕度 | |
| Operating and Non-operating | 90% RH at 30 °C (No condensation, Max. wet bulb, 29 °C) |
| (80% RH max when accessing DVD) | |
| 振動 | |
| Operating |
0.22 Grms, 5 Hz to 500 Hz (except when accessing DVD and 選項06 Removable HDD) |
| Non-operating |
2.28 Grms, 5 Hz to 500 Hz |
| 震動 | |
| Operating | 15 G, half-sine, 11 ms duration. (1 G max when accessing DVD and 選項06 Removable HDD) |
| Non-operating | 30 G, half-sine, 11 ms duration. |
| 安全 | UL 61010-1:2004 |
| CSA C22.2 No.61010-1-04 | |
| 電磁兼容能力 | EC Council EMC Directive 89/336/EEC, amended by 93/68/EEC |
| EN61326, Class A | |
| AS/NZS CISPR 11, Class A (Australia) | |
| 功率要求 | 90 VAC to 240 VAC, 50 Hz to 60 Hz. |
| 90 VAC to 132 VAC, 400 Hz. | |
| 功耗 | 600 W max. |
| 數據存儲 | Internal HDD, USB ports, DVD±RW (選項07), Removable HDD (選項06) |
| 校準間隔 | One year |
| 保修 | One year |
| GPIB | SCPI-compatible, IEEE488.2 compliant |
| Temperature Range | |
| Operating | +5 °C to +50 °C. (+5 °C to +40 °C when accessing DVD) |
| Storage | –20 °C to +60 °C |
| Warm-up 時間 | 20 min. |
| Altitude | |
| Operating | up to 3000 m (Approximately 10,000 ft.) |
| Non-operating | up to 12,190 m (40,000 ft.) |
| Relative Humidity | |
| Operating and Non-operating | 90% RH at 30 °C (No condensation, Max. wet bulb, 29 °C) |
| (80% RH max when accessing DVD) | |
| Vibration | |
| Operating |
0.22 Grms, 5 Hz to 500 Hz (except when accessing DVD and Opt. 06 Removable HDD) |
| Non-operating |
2.28 Grms, 5 Hz to 500 Hz |
| Shock | |
| Operating | 15 G, half-sine, 11 ms duration. (1 G max when accessing DVD and Opt. 06 Removable HDD) |
| Non-operating | 30 G, half-sine, 11 ms duration. |
| Safety | UL 61010-1:2004 |
| CSA C22.2 No.61010-1-04 | |
| Electromagnetic Compatibility, Complies with- | EC Council EMC Directive 89/336/EEC, amended by 93/68/EEC |
| EN61326, Class A | |
| AS/NZS CISPR 11, Class A (Australia) | |
| Power Requirements | 90 VAC to 240 VAC, 50 Hz to 60 Hz. |
| 90 VAC to 132 VAC, 400 Hz. | |
| Power Consumption | 600 W max. |
| Data Storage | Internal HDD, USB ports, DVD±RW (Opt. 07), Removable HDD (Opt. 06) |
| Calibration Interval | One year |
| Warranty | One year |
| GPIB | SCPI-compatible, IEEE488.2 compliant |
物理特點
| 重量 | kg | lb. |
| 帶所有選項時 | 26.4 | 58 |
| 外觀尺寸 | mm | in. |
| 高度 | 282 | 11.1 |
| 寬度 | 473 | 18.6 |
| 深度 | 531 | 20.9 |
| Weight | kg | lb. |
| With All Options | 26.4 | 58 |
| Dimensions | mm | in. |
| Height | 282 | 11.1 |
| Width | 473 | 18.6 |
| Depth | 531 | 20.9 |
注: 物理特點, 帶支腳, 沒有附件包。
訂貨信息
RSA6106A
實時頻譜分析儀, 9 kHz - 6.2 GHz。
RSA6114A
實時頻譜分析儀, 9 kHz - 14 GHz。
這兩款均包括: 快速入門手冊(印刷), 應用指南(印刷), 可以打印的在線幫助文件,編程人員手冊(光盤), 電源線, BNC-N適配器, USB鍵盤, USB鼠標, 包, 前面保護罩。注：在訂貨時請指明電源插頭和語言選項。
選項
| 選項 | 描述 |
|---|---|
| 選項01 | －內部前置放大器, 10 MHz - 3 GHz, 30 dB 增益, 2 GHz 時4 dB 的噪聲 系數, 典型值。 |
| 選項02 | 1 GB 存儲器, 頻率模板觸發。 |
| 選項05 | 數字IQ 輸出和500 MHz 模擬 IF 輸出。 |
| 選項06 | 可拆卸硬盤。可以拆下內置硬 盤，不兼容選項07 或08。 |
| 選項07 | DVD-RW, 必帶的選件, 免費, 不包括內置硬盤(不兼容選項06 或08)。 |
| 選項08 | 可拆卸固態硬盤。可以拆下內 置硬盤，不兼容選項06 或07。 |
| 選項11 | 相噪和抖動測量。 |
| 選項20 | 高級信號分析 (包括脈沖測量)。 |
| 選項21 | 通用調制分析 |
| 選項110 | 110 MHz 實時采集帶寬. |
| 選項1R | 機架安裝套件. |
附件
| 附件 | 描述 |
|---|---|
| RTPA2A 實時頻譜分析儀探頭適配器兼 容能力 |
Supports TekConnect probes P7225, P7240, P7260, P7330, P7313, P7350, P7350SMA, P7380, P7380SMA |
| RSAVu | SW based on the RSA3000 platform for analysis supporting 3G wireless standards, WLAN (IEEE 802.11a/b/g/n) phase noise measurements, and more measurements |
| RSAIQWIMAX | WiMAX 802.16-2004 and 802.16.e standards support |
| 額外的可拆卸硬盤 |
For use with 選項06 (Windows XP and instrument SW pre-installed). 065-0751-00 |
| 額外的可拆卸硬盤(固態) |
For use with 選項08 (Windows XP and instrument SW pre-installed). 065-0765-00 |
| 手提箱 | 016-1963-00 |
| 機架安裝翻新配件 | 016-1962-00 |
| 額外的用戶手冊 (紙面) | 071-1909-xx |
| 服務 手冊 (紙面) | 071-1914-xx |
國際電源插頭選項
| 選項 | 描述 |
|---|---|
| 選項A0 | 北美電源插頭 |
| 選項A1 | 通用歐洲電源插頭。 |
| 選項A2 | 英國電源插頭 |
| 選項A3 | 澳大利亞電源插頭 |
| 選項A4 | 北美240 V電源插頭 |
| 選項A5 | 瑞士 電源插頭 |
| 選項A6 | 日本 電源插頭 |
| 選項A10 | 中國 電源插頭 |
| 選項A11 | 印度 電源插頭 |
| 選項A99 | 不帶電源線或交流適配器。 |
服務
| 選項 | 描述 |
|---|---|
| 選項C3 | 校準 服務 3 年 |
| 選項C5 | 校準 服務 5 年 |
| 選項D1 | 校準 數據報告 |
| 選項D3 | 校準 數據報告 3 年 (選項 C3) |
| 選項D5 | 校準 數據報告 5 年 (選項 C5) |
| 選項R3 | 維修 服務 3 年 |
| 選項R5 | 維修 服務 5 年 |
| 選項CA1 | 提供一次校準服務或在指定 校準間隔時校準，以先到者為準。 |
升級
RSA61UP
| 選項 | 描述 |
|---|---|
| 選項01 | 內部前置放大器, 10 MHz - 3 GHz, 30 dB 增益, 2 GHz 時4 dB 的噪聲 系數, 典型值。 |
| 選項02 | 1 GB 存儲器, 頻率模板觸發 |
| 選項05 | 數字IQ 輸出和500 MHz 模擬 IF 輸出。 |
| 選項06 | 可拆卸硬盤。可以拆下內置硬 盤，不兼容選項07 或08。 |
| 選項07 | DVD-RW, 必帶的選件, 免費, 不包括內置硬盤(不兼容選項06 或08)。 |
| 選項08 | 可拆卸固態硬盤。可以拆下內 置硬盤，不兼容選項06 或07。 |
| 選項20 | 高級信號分析 (包括脈沖測量)。 |
| 選項21 | 通用調制分析 |
| 選項110 | 110 MHz 實時采集帶寬 |
| 選項IF | 安裝服務 |
| 選項IFC | 安裝服務 + 校準 |
儀器保證：
我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
品牌推薦 |
||
|
||
|
Copyright© 2022 All Rights Reserved. 深圳市嘉惠捷科技有限公司 版權所有 [粵ICP備11090750號] [法律顧問] 公司地址：深圳市南山區西麗牛成路221號8樓 郵編：518000 在線QQ服務:  銷售服務熱線：13715327187 電話：0755-86016691 傳真：0755-86016691回收熱線：13982098642 E-mail:sales@test-e.com |
