其它/PM400K2/索雷博 PM400K2 觸屏數字功率和能量表頭

• 其它/PM400K2/索雷博 PM400K2 觸屏數字功率和能量表頭
• 欲購買或租賃其它/PM400K2/索雷博 PM400K2 觸屏數字功率和能量表頭？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

,



數字表頭，帶光電二極管探頭(500 nW - 500 mW，400 nm - 1100 nm)

Kit Item #	PM121D	PM400K2
Click Image to Enlarge
Included Console Item #	PM100D	PM400
Display	4" Backlit Digital Display, 320 x 240 Pixel Resolution	4.3" Capacitive Color Touchscreen, WQVGA Resolution
Connectivity	USB 2.0 Connectivity
Console Sensor Compatibility	All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors

Wavelength Range	400 - 1100 nm
Power Range	500 nW - 500 mW
Resolution	10 nW
Detector Type	Si Photodiode
Aperture	Ø9.5 mm
Spec Sheet
Included Sensor	S121C

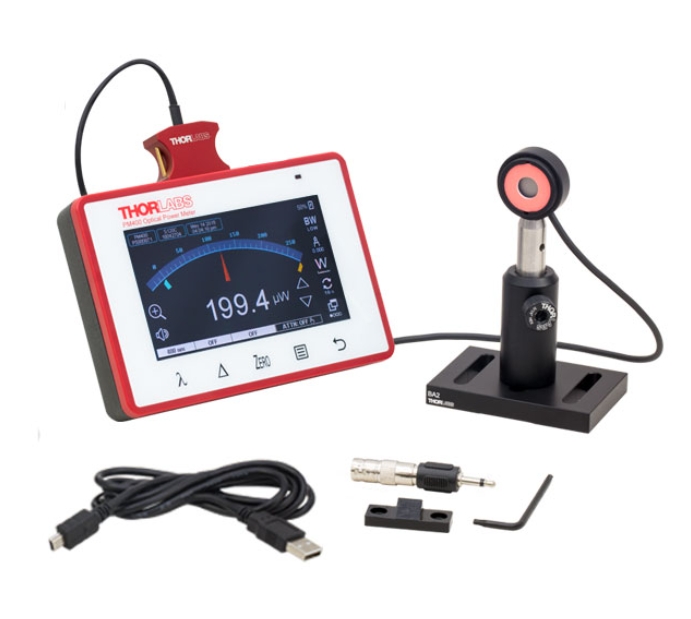

每個套件包含我們的PM100D或PM400功率計表頭、S121C光電二極管功率探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。這個套件通常用于測量中低功率(500 nW - 500 mW)可見光和近紅外激光(小于1100 nm)。它和頁面上方套件中包含的S120C相似，但是多一個中性密度濾光片，用于衰減探頭前的光。探頭有源區域周圍是一個熒光對準盤，可吸收400 - 640 nm和800 - 1700 nm的光線。







數字表頭，帶光電二極管探頭(500 nW - 500 mW，400 nm - 1100 nm)

Kit Item #	PM121D	PM400K2
Click Image to Enlarge
Included Console Item #	PM100D	PM400
Display	4" Backlit Digital Display, 320 x 240 Pixel Resolution	4.3" Capacitive Color Touchscreen, WQVGA Resolution
Connectivity	USB 2.0 Connectivity
Console Sensor Compatibility	All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors

Wavelength Range	400 - 1100 nm
Power Range	500 nW - 500 mW
Resolution	10 nW
Detector Type	Si Photodiode
Aperture	Ø9.5 mm
Spec Sheet
Included Sensor	S121C

每個套件包含我們的PM100D或PM400功率計表頭、S121C光電二極管功率探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。這個套件通常用于測量中低功率(500 nW - 500 mW)可見光和近紅外激光(小于1100 nm)。它和頁面上方套件中包含的S120C相似，但是多一個中性密度濾光片，用于衰減探頭前的光。探頭有源區域周圍是一個熒光對準盤，可吸收400 - 640 nm和800 - 1700 nm的光線。





儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
