其它/PM122D/索雷博 PM122D 數字功率和能量表頭
- 其它/PM122D/索雷博 PM122D 數字功率和能量表頭
- 欲購買或租賃其它/PM122D/索雷博 PM122D 數字功率和能量表頭？請在線咨詢或拔打24小時電話：13715327187
 |
詳細資料：
,
數字表頭，帶光電二極管探頭(50 nW - 40 mW，700 nm - 1800 nm)
| Kit Item # | PM122D | PM400K4 |
|---|---|---|
| Click Image to Enlarge |
 |
 |
| Included Console Item # | PM100D | PM400 |
| Display |
4" Backlit Digital Display, 320 x 240 Pixel Resolution |
4.3" Capacitive Color Touchscreen, WQVGA Resolution |
| Connectivity | USB 2.0 Connectivity | |
|
Console Sensor Compatibility |
All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors |
|
| Wavelength Range | 700 - 1800 nm |
| Power Range | 50 nW - 40 mW |
| Resolution | 2 nW |
| Detector Type | Ge Photodiode |
| Aperture | Ø9.5 mm |
| Spec Sheet |
 |
| Included Sensor | S122C |
|---|

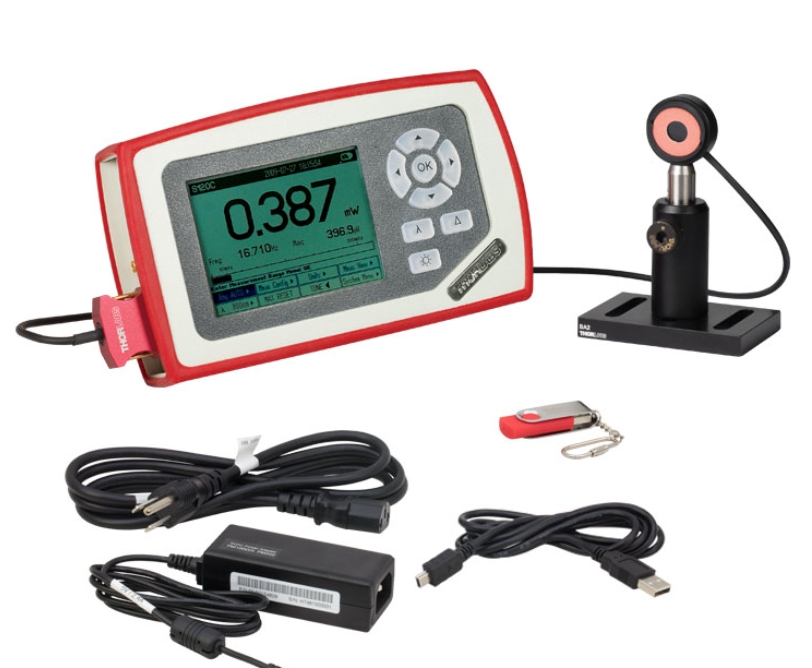

每個套件都包含我們的PM100D或PM400功率計表頭、S122C光電二極管功率探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。該套件組合非常適合遠紅光到近紅外波段(700 - 1800 nm)測量。探頭的有源區域周圍有一個熒光對準盤，可吸收400 - 640 nm和800 - 1700 nm的光線。
數字表頭，帶光電二極管探頭(50 nW - 40 mW，700 nm - 1800 nm)
| Kit Item # | PM122D | PM400K4 |
|---|---|---|
| Click Image to Enlarge |
|
|
| Included Console Item # | PM100D | PM400 |
| Display |
4" Backlit Digital Display, 320 x 240 Pixel Resolution |
4.3" Capacitive Color Touchscreen, WQVGA Resolution |
| Connectivity | USB 2.0 Connectivity | |
|
Console Sensor Compatibility |
All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors |
|
| Wavelength Range | 700 - 1800 nm |
| Power Range | 50 nW - 40 mW |
| Resolution | 2 nW |
| Detector Type | Ge Photodiode |
| Aperture | Ø9.5 mm |
| Spec Sheet |
|
| Included Sensor | S122C |
|---|
每個套件都包含我們的PM100D或PM400功率計表頭、S122C光電二極管功率探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。該套件組合非常適合遠紅光到近紅外波段(700 - 1800 nm)測量。探頭的有源區域周圍有一個熒光對準盤，可吸收400 - 640 nm和800 - 1700 nm的光線。
儀器保證：
我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
