其它/PM400K5/索雷博PM400K5 觸屏數字功率和能量表頭

• 其它/PM400K5/索雷博PM400K5 觸屏數字功率和能量表頭
• 欲購買或租賃其它/PM400K5/索雷博PM400K5 觸屏數字功率和能量表頭？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

,



數字表頭，帶熱敏探頭(2 mW - 10 W，0.19 µm - 20 µm)

Kit Item #	PM125D	PM400K5
Click Image to Enlarge
Included Console Item #	PM100D	PM400
Display	4" Backlit Digital Display, 320 x 240 Pixel Resolution	4.3" Capacitive Color Touchscreen, WQVGA Resolution
Connectivity	USB 2.0 Connectivity
Console Sensor Compatibility	All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors

Included Sensor	S425C
Wavelength Range	0.19 - 20 µm
Power Range	2 mW - 10 W
Resolution	100 µW
Detector Type	Thermal
Aperture	Ø25.4 mm
Spec Sheet

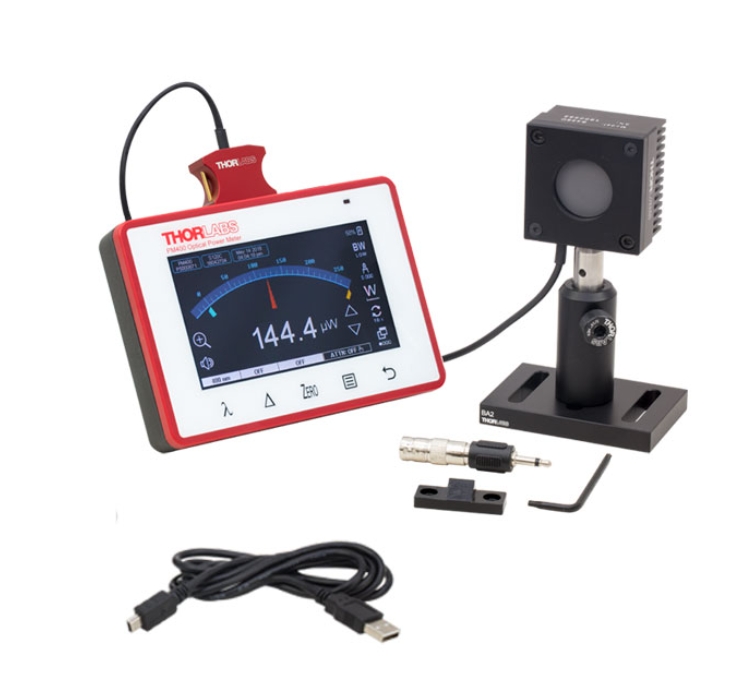

每個套件包含我們的PM100D或PM400功率計表頭、S425C光電二極管探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。該組合非常適合需要在高功率激光(最高10 W)或較大波長(最大為20 µm)的測量。S425C探頭響應時間非常快，僅有0.6 s。







數字表頭，帶熱敏探頭(2 mW - 10 W，0.19 µm - 20 µm)

Kit Item #	PM125D	PM400K5
Click Image to Enlarge
Included Console Item #	PM100D	PM400
Display	4" Backlit Digital Display, 320 x 240 Pixel Resolution	4.3" Capacitive Color Touchscreen, WQVGA Resolution
Connectivity	USB 2.0 Connectivity
Console Sensor Compatibility	All C-Series Photodiode and Thermal Power Sensors as Well as All Pyroelectric Energy Sensors

Included Sensor	S425C
Wavelength Range	0.19 - 20 µm
Power Range	2 mW - 10 W
Resolution	100 µW
Detector Type	Thermal
Aperture	Ø25.4 mm
Spec Sheet

每個套件包含我們的PM100D或PM400功率計表頭、S425C光電二極管探頭和一套接桿安裝組件，包括BA2底座、PH2接桿架和TR2 Ø1/2英寸接桿。該組合非常適合需要在高功率激光(最高10 W)或較大波長(最大為20 µm)的測量。S425C探頭響應時間非常快，僅有0.6 s。





儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
