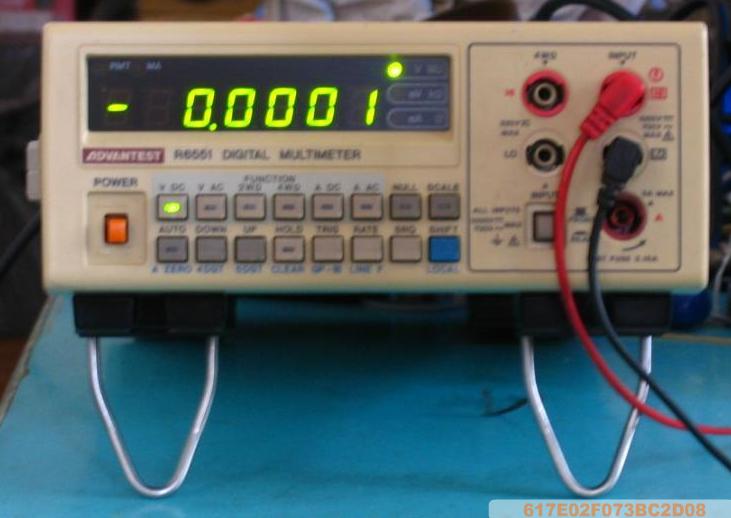

ADVANTEST/R6551/高精度臺式數字萬用表 五位半

• ADVANTEST/R6551/高精度臺式數字萬用表 五位半
• 欲購買或租賃ADVANTEST/R6551/高精度臺式數字萬用表 五位半？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

Digital Multimeter(5-1/2 digits, GPIB)    數字五位半-帶GPIB接口
Advantest R6551 Performance Characteristics
Form Factor	Benchtop
Number of Digits (Max)	5.5 digits
DC Volts Minimum Range	0.03 V
DC Volts Maximum Range	1000 V
DC Volts No. of Ranges	5 QTY
DC Volts Range Steps	1/10/100
DC Volts Minimum Resolution	1 uV
DC Volts Maximum Resolution	10 mV
DC Volts Maximum Reading Rate	100 pt/sec
DC Volts Basic 1 yr accuracy	0.015 %
AC Volts Minimum Range	300 mV
AC Volts Maximum Range	700 V
AC Volts No. of Ranges	5 QTY
AC Volts Range Steps	1/10/100
AC Volts Minimum Frequency	20 Hz
AC Volts Maximum Frequency	300 MHz
AC Volts Minimum Resolution	1 uV
AC Volts Maximum Reading Rate	100 pt/sec
AC Volts Basic 1 Year Accuracy	1.1 %
True Rms (?)	Yes
Normal Mode Rejection Ratio	60 dB
Common mode Rejection Ratio	130 dB
DC Current Minimum Range	300 mA
DC Current Maximum Range	3 A
DC Current No. of Ranges	2 QTY
DC Current Range Steps	1/10/100
DC Current Minimum Resolution	1 uA
DC Current Maximum Resolution	10 uA
DC Current Maximum Reading Rate	100 pt/sec
DC Current Basic 1 yr accuracy	0.13 %
AC Current Minimum Range	300 mA
AC Current Maximum Range	3 A
AC Current No. of Ranges	2 QTY
AC Current Range Steps	1/10/100
AC Current Minimum Resolution	1 uA
AC Current Maximum Resolution	10 uA
AC Current Maximum Reading Rate	100 pt/sec
AC Current Basic 1 Year Accuracy	2 %
Resistance 2 wire/4 wire	2 Wire,4 Wire
Resistance Minimum Range	300 Ohm
Resistance Maximum Range	300 MOhm
Resistance No. of Ranges	7 QTY
Resistance Range Steps	1/10/100
Resistance Maximum Reading Rate	100 pt/sec
Resistance Basic 1 yr accuracy	2 %
Minimum Frequency	20 Hz
Maximum Frequency	300 kHz
Frequency Accuracy	2 %
Advantest R6551 Measurements/Features
Null Function Scale Function
Advantest R6551 Programmability/Connectivity
User Interface	Proprietary
Ports to Peripheral Devices	GPIB
Novram data storage	Yes
Advantest R6551 Life Cycle Data
Out of Production	Nov-01-2000
Advantest R6551 Compliance
CE Compliance	Not on file
UL Compliance	Not compliant
Advantest R6551 Power Requirements
Input Power	Not required
Advantest R6551 Physical Dimensions
Width	210 mm(8.26 in)
Height	86 mm(3.38 in)
Length	350 mm(13.77 in)
Weight	2.9 kg(6.39 lb)

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
